Vehicle Exploded View - GILERA NEXUS 250 -SP-E3 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

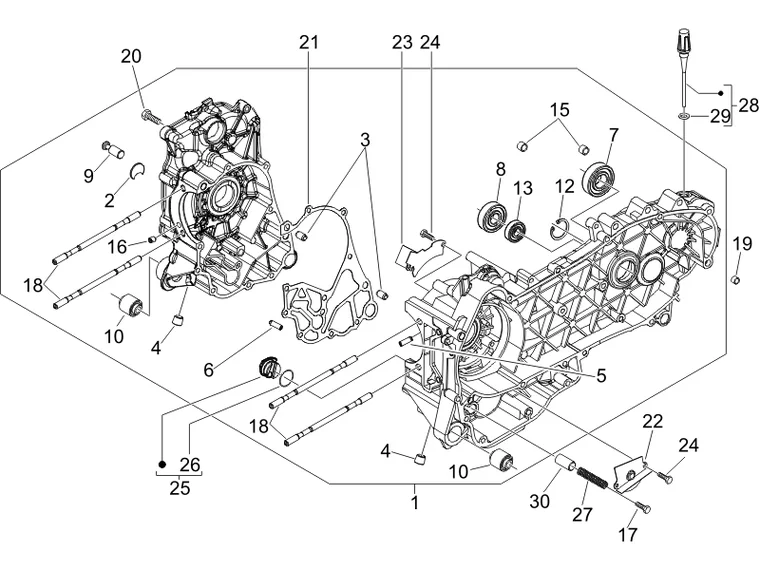

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/182/Nexus_250_-SP-_E3_2006-20-023.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/8/img/139378.jpg)
1 |
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 250-300 MP3, X7, VESPA GTS/GILERA 250-300 NEXUS (CAT-1) -1A0117820A- More informationQuantity required : 1 |
||||||
1 |
1A0009740B - CARTER COMPLET 2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/9/img/69149.jpg)
2 |
840489 - DEFLECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
3 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
4 |
B015433 - PLUG VISSES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
5 |
484034 - GICLEUR More informationQuantity required : 1 |
||||||
|
6 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
7 |
BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
8 |
BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
9 |
483785 - PIVOT RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
10 |
SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
12 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
13 |
GASKET FOR DRIVING SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82878R - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
15 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957- More informationQuantity required : 2 |
||||||
|
16 |
844582 - GICLEUR CARTER More informationQuantity required : 1 |
||||||
|
17 |
1A003111 - VIS M5X10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/5/img/109025.jpg)
18 |
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 250-300 CC -1A003628R- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
19 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
20 |
B016425 - VIS BRIDE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/3/img/70573.jpg)
21 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -875111- More informationQuantity required : 1 |
||||||
|
22 |
483767 - PANNEAU INF!RIEURE More informationQuantity required : 1 |
||||||
|
23 |
485047 - PANNEAU SUP!RIEURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
24 |
830061 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/1/img/69371.jpg)
25 |
OIL FILTER DOOR INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -845861- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
26 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -431065- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/6/img/66686.jpg)
27 |
485655 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
28 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
29 |
827085 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.JPG)
30 |
829661 - VOLET HUILE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
