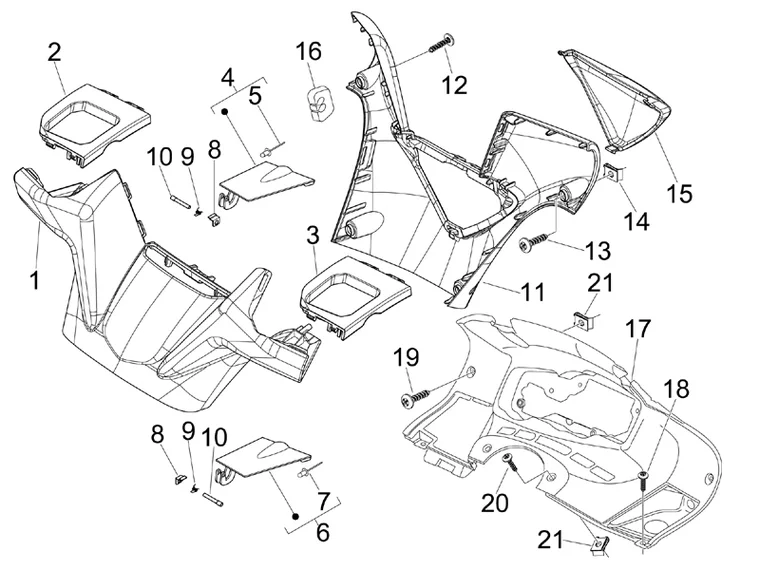

Vehicle Exploded View - GILERA NEXUS 125 ie E3 2009 GILERA

Guidon/direction : 03.01 COUVERTURES GUIDON
Couvertures guidon
Search
975715 - PASSE CABLE

16
P2R reference P2R reference 71051
Maker reference Maker reference 975715

975715 - PASSE CABLE

More information

Quantity required : 1
DASHBOARD PANEL BLANK "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975072000G-

17
P2R reference P2R reference 71025
Maker reference Maker reference 975072000G

DASHBOARD PANEL BLANK "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975072000G-

More information

Quantity required : 1
267115 - VIS

18
P2R reference P2R reference 66058
Maker reference Maker reference 267115

267115 - VIS

More information

Quantity required : 2
SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

19
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 -

20
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 -

More information

Quantity required : 2
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

21
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 4
