Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

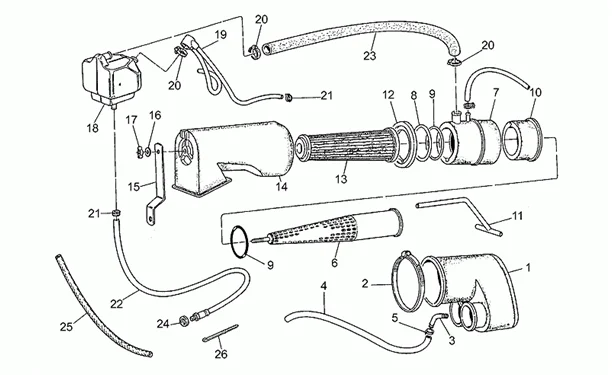

Chassis : 33.09 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/496/Nevada_350_1992-1993_33.09.PNG)
1 |
GU19114300 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
2 |
GU93305092 - COLLIER More informationQuantity required : 1 |
||||||
|
3 |
GU17114650 - RACCORD COUDE More informationQuantity required : 1 |
||||||
|
4 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
5 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
|
6 |
SUPPORT FILTRE |
||||||
|
7 |
GU19156701 - BOITIER RENIFLARD More informationQuantity required : 1 |
||||||
|
8 |
GU19113900 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/7/img/132247.jpg)
9 |
GU90706552 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
10 |
GU19156900 - ELEMENT AR More informationQuantity required : 1 |
||||||
|
11 |
GU19156001 - TUYAU DE RENIFL.INT More informationQuantity required : 1 |
||||||
|
12 |
GU17113450 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/9/img/129319.jpg)
13 |
GU17113651 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
14 |
GU17114050 - CHAMBRE DE FILTRE A More informationQuantity required : 1 |
||||||
|
15 |
GU27114120 - PLAQUETTE D ARRET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
16 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 1 |
||||||
|
17 |
GU92670305 - ECROU More informationQuantity required : 1 |
||||||
|
18 |
Corp |
||||||
|
19 |
|
||||||
|
20 |
GU93305018 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
21 |
CM002907 - COLLIER More informationQuantity required : 3 |
||||||
|
22 |
GU27159360 - RENIFLARD More informationQuantity required : 1 |
||||||
|
23 |
GU30157430 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
24 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200 More informationQuantity required : 1 |
||||||
|
25 |
GU00823923140 - GUAINA NERA D16 S0,4 VETR More informationQuantity required : 1 |
||||||
|
26 |
GU61609630 - COLLIER More informationQuantity required : 1 |
