Vehicle Exploded View - APRILIA MINI RX 50 Experience 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

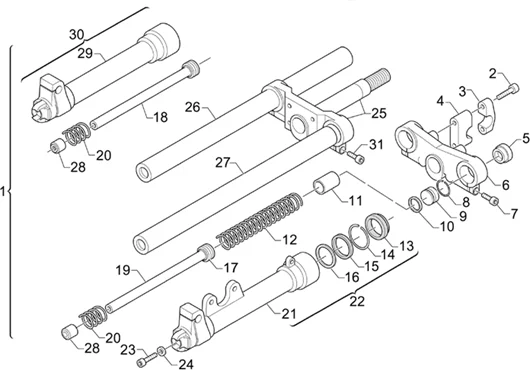

Chassis : 28.11 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/299/Mini_RX_Experience_2003_28.11.PNG)
Search
1 |
AP8350465 - FORCELLA CPL. More informationQuantity required : 1 |
||||||
|
6 |
AP8350229 - TESTA More informationQuantity required : 1 |
||||||
|
13 |
AP8350253 - PARAPOLVERE More informationQuantity required : 2 |
||||||
|
29 |
AP8350230 - FODERO DX More informationQuantity required : 1 |
