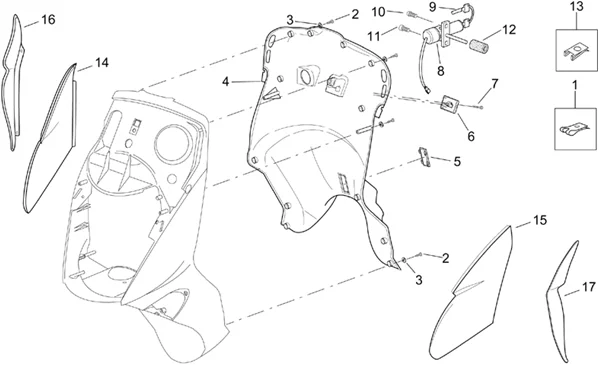

Vehicle Exploded View - APRILIA LEONARDO 150 ST 2001-2004

	P2R reference	72157
	Maker reference	AP8202449

AP8202449 - CLIP X VITE AUTOFIL.D.4,2

	P2R reference	71876
	Maker reference	AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

	P2R reference	71873
	Maker reference	AP8150382

AP8150382 - RONDELLE

	P2R reference	51596
	Maker reference	AP8158316

AP8158316 - TABLIER INTERNE GRIS;

	P2R reference
	Maker reference	AP8248001

Couv. données hom., gris;

	P2R reference	72135
	Maker reference	AP8201534

HELMET HOOK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8201534 -

	P2R reference	71880
	Maker reference	AP8150423

AP8150423 - VIS

	P2R reference	45258
	Maker reference	AP8102924

AP8102924 - BLOC DEMARREUR-BLOC

	P2R reference	45423
	Maker reference	AP8104613

AP8104613 - "CLE ""APRILIA"" SANS TRANSPO."

	P2R reference	71919
	Maker reference	AP8152140

AP8152140 - VIS A ARRACHEMENT

	P2R reference	71824
	Maker reference	AP8150137

SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137-

	P2R reference	41729
	Maker reference	890514

890514 - TUYAU POLIFLEX

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	51601
	Maker reference	AP8158324

AP8158324 - FLANC D, GRIS;

	P2R reference	51677
	Maker reference	AP8158520

AP8158520 - FLANC D, BLEU;

	P2R reference	51753
	Maker reference	AP8158640

AP8158640 - FLANC D, NOIR;

	P2R reference	51786
	Maker reference	AP8158694

AP8158694 - FLANC D, ROUGE;

	P2R reference	53296
	Maker reference	AP8168653

AP8168653 - FLANC D, GRIS;

	P2R reference	53312
	Maker reference	AP8168671

AP8168671 - FLANC D, ROUGE;

	P2R reference	53374
	Maker reference	AP8168776

AP8168776 - FLANC D, NOIR;

	P2R reference
	Maker reference	AP8178290

Flanc D, bleu

	P2R reference	53935
	Maker reference	AP8178303

AP8178303 - FIANCATINA DX V.BLU MAIN

	P2R reference	51600
	Maker reference	AP8158323

AP8158323 - FLANC G, GRIS;

	P2R reference	51678
	Maker reference	AP8158521

AP8158521 - FLANC G, BLEU;

	P2R reference	51754
	Maker reference	AP8158641

AP8158641 - FLANC G, NOIR;

	P2R reference	51787
	Maker reference	AP8158695

AP8158695 - FLANC G, ROUGE;

	P2R reference	53297
	Maker reference	AP8168654

AP8168654 - FLANC G, GRIS;

	P2R reference	53313
	Maker reference	AP8168672

AP8168672 - FLANC G, ROUGE;

	P2R reference	53375
	Maker reference	AP8168777

AP8168777 - FLANC G, NOIR;

	P2R reference
	Maker reference	AP8178291

Flanc G, bleu

	P2R reference	53936
	Maker reference	AP8178304

AP8178304 - FIANCATINA SX V.BLU MAIN

	P2R reference	51602
	Maker reference	AP8158325

AP8158325 - PARE-CHOCS DTE;

	P2R reference	53305
	Maker reference	AP8168663

AP8168663 - PARE-CHOCS DTE;

	P2R reference	51603
	Maker reference	AP8158326

AP8158326 - PARE-CHOCS GCHE;

	P2R reference	53306
	Maker reference	AP8168664

AP8168664 - PARE-CHOCS GCHE;
