Vehicle Exploded View - APRILIA LEONARDO 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

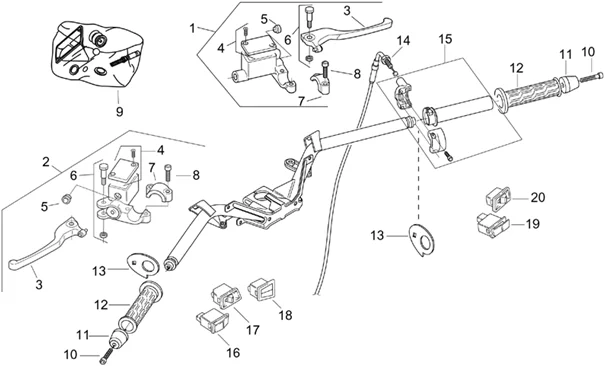

Chassis : 28.21 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/248/Leonardo_150_1999-2001_28.21.PNG)
1 |
AP8213359 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
2 |
AP8213360 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
3 |
AP8218478 - LEVIER FREIN ALU; More informationQuantity required : 2 |
||||||
|
4 |
AP8249191 - COUVERCLE POMPE; More informationQuantity required : 2 |
||||||
|
5 |
AP8213455 - HUBLOT POMPE FREIN More informationQuantity required : 2 |
||||||
|
6 |
AP8218483 - GOUJON DE LEVIER CPL.; More informationQuantity required : 2 |
||||||
|
7 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 2 |
||||||
|
8 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
|
9 |
AP8213456 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
10 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
10 |
AP8152283 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
11 |
AP8102717 - MASSE ANTIVIBRATILE GUIDON More informationQuantity required : 2 |
||||||
|
11 |
AP8202188 - MASSE ANTIVIBRATILE GUIDON; More informationQuantity required : 2 |
||||||
|
12 |
AP8118610 - COUPLE MANETTES, GRIS More informationQuantity required : 1 |
||||||
|
13 |
AP8144128 - FERMETURE GUID LAT. More informationQuantity required : 2 |
||||||
|
14 |
AP8114388 - CABLE GAZ; More informationQuantity required : 1 |
||||||
|
15 |
AP8118548 - COMMANDE GAZ SANS POIGNEE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
16 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124209- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
17 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8215767- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/2/9/img/47429.jpg)
18 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50-125 MOJITO, 50 RALLY, 125 LEONRDO 1996>2004 -AP8124081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
19 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124208- More informationQuantity required : 1 |
||||||
|
20 |
AP8124207 - POUSSOIR FEUX More informationQuantity required : 1 |
||||||
|
20 |
AP8212994 - POUS. FEUX 2 VOIES More informationQuantity required : 1 |
