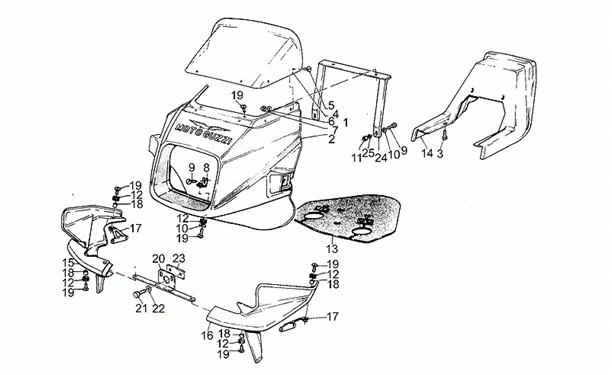

Chassis : 33.02 CARÈNE-PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/495/Le_Mans_III_850_1981-1984_33.02.PNG)
3 |
GU98326016 - VIS More informationQuantity required : 2 |
||||||
|
4 |
GU28577250 - PARE-BRISE More informationQuantity required : 1 |
||||||
|
6 |
GU95007204 - RONDELLE More informationQuantity required : 6 |
||||||
|
7 |
GU92781040 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
9 |
GU98084314 - VIS M6X14 More informationQuantity required : 3 |
||||||
|
10 |
GU95000206 - RONDELLE More informationQuantity required : 3 |
||||||
|
11 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
12 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
|
17 |
GU17570561 - ETRIER FIXATION FLANC More informationQuantity required : 2 |
||||||
|
18 |
GU91180607 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
19 |
GU98326016 - VIS More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
22 |
GU95007208 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
GU17451750 - PLAQUETTE More informationQuantity required : 1 |
