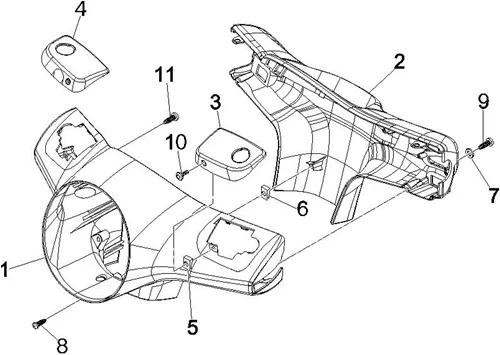

Vehicle Exploded View - VESPA VESPA GT 200 Granturismo 200 L 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)
Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/204/Granturismo_200_L_2005_03.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/6/9/0/img/143690.JPG)
1 |
1B001185 - CACHE DIRECTION BRUTE More informationQuantity required : 1 |
|||||||||
1 |
1B001185000DE - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
1 |
1B001185000F2 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
1 |
65268100F3 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/7/5/6/img/139756.jpg)
1 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA GTS BLACK 79/A -1B001185000ND- More informationQuantity required : 1 |
|||||||||
|
2 |
62344700F3 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
62344700ND - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200ND - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200F3 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200F2 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200DE - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/3/4/2/img/87342.jpg)
2 |
STEERING COVER- REAR SIDE "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RAW TO BE PAINT -652682- More informationQuantity required : 1 |
|||||||||
|
3 |
62191700BM - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
62191700D9 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
62191700DE - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
62191700EB - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
62191700F3 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
62191700ND - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
62191700VC - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
6219170087 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
621917 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
5996780087 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
599678 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800D9 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800DE - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800EB - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800F2 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800F3 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800ND - COUVERTURE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/6/4/3/img/82643.jpg)
3 |
BRAKE MASTER CYLINDER COVER-LEFT- "PIAGGIO GENUINE PART" 125 VESPA GT GREEN 318 -59967800VC- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/1/1/3/img/84113.jpg)
4 |
62191800D9 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
62191800DE - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
62191800EB - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
62191800F3 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
62191800ND - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
62191800VC - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
62191800BM - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
6219180087 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
621918 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
599679 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900D9 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900DE - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900EB - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900F2 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900ND - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900VC - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
5996790087 - COUVERTURE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/0/img/70910.jpg)
5 |
959263 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/4/img/63774.jpg)
7 |
003053 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
9 |
267115 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
10 |
268596 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/9/8/img/77798.jpg)
11 |
294678 - VIS TCIC 3,5X16 More informationQuantity required : 2 |
|||||||||
