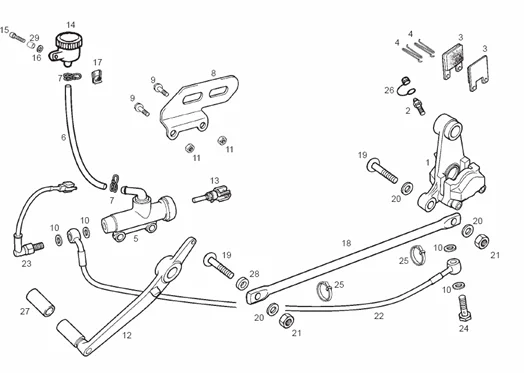

Vehicle Exploded View - DERBI GPR 125 GPR RACING & R 125cc 2004-2006 E2 2ed

	P2R reference	64413
	Maker reference	00H01107581

00H01107581 - ETRIER FREIN ARR.

	P2R reference	64930
	Maker reference	00H04700121

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010, 125 SC -00H04700121

	P2R reference	64479
	Maker reference	00H01303551

00H01303551 - PLAQUETTE DE FREIN

	P2R reference	64467
	Maker reference	00H01301831

BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831-

	P2R reference	64410
	Maker reference	00H01105181

REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01105181-

	P2R reference	64398
	Maker reference	00H01101211

00H01101211 - FLEXIBLE DE FREIN ARRIERE

	P2R reference	64809
	Maker reference	00H03700131

HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131-

	P2R reference	64408
	Maker reference	00H01104701

00H01104701 - PROTECTION POMPE FREIN

	P2R reference	63994
	Maker reference	00G01504701

00G01504701 - BOULON SER.

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	193525
	Maker reference	00H01100541

00H01100541 - S/ENSEMBLE PDALE FREIN

	P2R reference	193526
	Maker reference	00H01104611

00H01104611 - TIGE DE FREIN ARRIERE

	P2R reference	63873
	Maker reference	00D01100201

REAR BRAKE FLUID TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01100201

	P2R reference	63615
	Maker reference	000020530515

00002053051 - VIS

	P2R reference	64840
	Maker reference	00H03800722

00H03800722 - RONDELLE

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	64460
	Maker reference	00H01301311

00H01301311 - TIRANT FREIN

	P2R reference	64152
	Maker reference	00G06800211

00G06800211 - VIS FIXATION BIELLE PRINCIPALE

	P2R reference	63789
	Maker reference	004021000015

WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001-

	P2R reference	63765
	Maker reference	0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

	P2R reference	64418
	Maker reference	00H01114081

BRAKE PIPE "PIAGGIO GENUINE PART" GILERA 125 SC -00H01114081

	P2R reference	64393
	Maker reference	00H01100221

00H01100221 - INTERRUPTEUR COMMANDEMENT STOP

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	188063
	Maker reference	00H01100631

00H01100631 - BOUCHON

	P2R reference	64723
	Maker reference	00H02701271

00H02701271 - CAOUTCHOUC DE SELECTEUR

	P2R reference	64509
	Maker reference	00H01310181

00H01310181 - DOUILLE

	P2R reference	64376
	Maker reference	00H01002821

SPACER- FOR STOP LIGHT SWITCH/REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT/APRILIA 50 RS -00H01002821
