Vehicle Exploded View - DERBI GPR 50 cc REPLICA PESEK 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

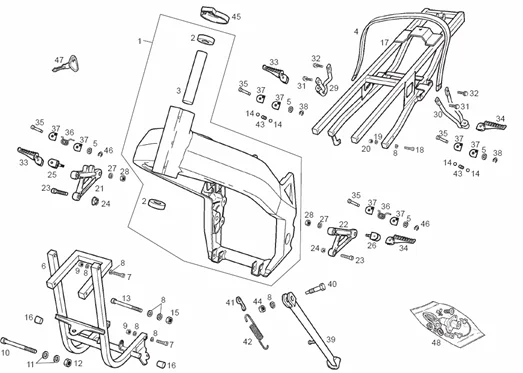

Tables : 1 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1122/GPR_50cc_REPLICA_PESEK_2007_E2_1.png)
1 |
00H019796015 - SOUS ENSEMBLE CADRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/6/img/63606.jpg)
2 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205- More informationQuantity required : 1 |
||||||
|
3 |
00H06300401 - TUBE SEPARATION ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
00H04901731 - POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
5 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
6 |
00H00105941A - CADRE ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
7 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
8 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
9 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/8/img/64748.jpg)
10 |
SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03000272- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
11 |
WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
12 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/4/img/64704.jpg)
13 |
SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/8/img/63608.jpg)
14 |
00000061061 - BILLE DIAMETRE 6. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
15 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
00H01504301 - BOUCHON More informationQuantity required : 1 |
||||||
|
17 |
00H00108341A - CADRE ARRIERE More informationQuantity required : 1 |
||||||
|
18 |
00004184001 - VIS More informationQuantity required : 1 |
||||||
|
19 |
00000033080 - RONDELLE More informationQuantity required : 1 |
||||||
|
20 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
21 |
FOOTREST SUPPORT- FRONT RIGHT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01504121- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/1/img/64531.jpg)
22 |
FOOTREST SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01501131 More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/7/1/img/64671.jpg)
25 |
00H02202311 - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
|
26 |
00H02202301 - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
|
27 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
28 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
29 |
00H00105702A - REPOSE PIED DROIT More informationQuantity required : 1 |
||||||
|
30 |
00H00105672A - REPOSE PIED GAUCHE More informationQuantity required : 1 |
||||||
|
31 |
00006082000 - VIS More informationQuantity required : 1 |
||||||
|
32 |
00006083000 - VIS A TETE HEXAGON.AVEC BRIDE More informationQuantity required : 1 |
||||||
|
33 |
RIGHT FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01507091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/6/img/64556.jpg)
34 |
LEFT FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01507451- More informationQuantity required : 1 |
||||||
|
35 |
00H04902311 - AXE ARTICULATION TRIER More informationQuantity required : 1 |
||||||
|
36 |
00H04901291 - RESSORT FIXATION FTRIER GPR-50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/5/img/64955.jpg)
37 |
00H04903401 - SUPPORT FIXATION TRIER PASSAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
38 |
CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/2/2/img/64322.jpg)
39 |
SIDE STAND "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H00827011A- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/6/img/64316.jpg)
40 |
SCREW - FOR STAND FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00805072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
41 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/5/img/64315.jpg)
42 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00804081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/1/img/64951.jpg)
43 |
00H04902291 - RESSORT FIXATION FTRIER PASSAG More informationQuantity required : 1 |
||||||
|
44 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
45 |
00H00203761 - BOUCHON More informationQuantity required : 1 |
||||||
|
46 |
CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400- More informationQuantity required : 1 |
||||||
|
47 |
00H01801411 - CLEF More informationQuantity required : 1 |
||||||
|
48 |
86150R - ENS. KIT SERRURES SANS LEVIER More informationQuantity required : 1 |
