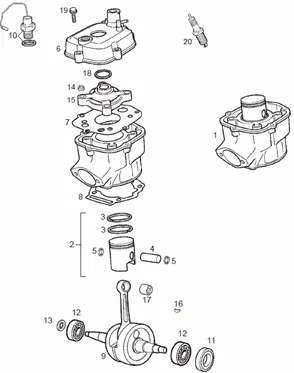

Vehicle Exploded View - DERBI GPR 50 2T E2 2009-2010 (EMEA)

	P2R reference	149156
	Maker reference	1A0097335

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT 2018> E4 -1A0097335

	P2R reference	70640
	Maker reference	8770700001

PISTON (CAT A) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006>, RS 2006>2010, RS4 2011> -8770700001-

	P2R reference	70641
	Maker reference	8770700002

PISTON (CAT B) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006>, RS 2006>2010, RS4 2011> -8770700002-

	P2R reference	70643
	Maker reference	8770700004

PISTON (CAT D) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006>, RS 2006>2010, RS4 2011> -8770700004-

	P2R reference	70642
	Maker reference	8770700003

PISTON (CAT C) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006>, RS 2006>2010, RS4 2011> -8770700003

	P2R reference	70644
	Maker reference	877072

PISTON RING- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -877072-

	P2R reference	69408
	Maker reference	847012

PISTON PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847012

	P2R reference	70683
	Maker reference	878519

STOP RING FOR PISTON "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX, RS -878519-

	P2R reference	193205
	Maker reference	CM2869035

CM2869035 - COUVERCLE CULASSE

	P2R reference	69407
	Maker reference	847009

CYLINDER HEAD GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010/APRILIA 50 RS 2006>2010 -847009-

	P2R reference	73343
	Maker reference	CM164902

CYLINDER BASE GASKET 0,5 MM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -CM164902-

	P2R reference	73342
	Maker reference	CM164901

CYLINDER BASE GASKET 0,3 MM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -CM164901-

	P2R reference	73344
	Maker reference	CM164903

CYLINDER BASE GASKET 0,7 MM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -CM164903-

	P2R reference	139422
	Maker reference	83052R

CRANKSHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS, RX,SX/GILERA 50 SMT, RCR -83052R

	P2R reference	70730
	Maker reference	880325

TEMPERATURE SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006> -880325

	P2R reference	69413
	Maker reference	847020

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020-

	P2R reference	69475
	Maker reference	8471726

CRANKSHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>/APRILIA 50 SX, RX, RS 2006> -847172

	P2R reference	69413
	Maker reference	847020

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020-

	P2R reference	66509
	Maker reference	436947

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947-

	P2R reference	149148
	Maker reference	1A0089765

CYLINDER HEAD- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RS, SX, RX 2006> -1A0089765

	P2R reference	69488
	Maker reference	847215

WOODRUFF KEY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -847215-

	P2R reference	69523
	Maker reference	847529

PISTON CAGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847529

	P2R reference	156834
	Maker reference	1A014908

O'RING GASKET FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RS4 2011>/GILERA 50 SMT, RCR 2006> -1A014908

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	69457
	Maker reference	847085

SPARK PLUG NGK B8ES "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR, MOTO-GUZZI V65, NEVADA, STRADA -847085-
