Vehicle Exploded View - GILERA GPR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

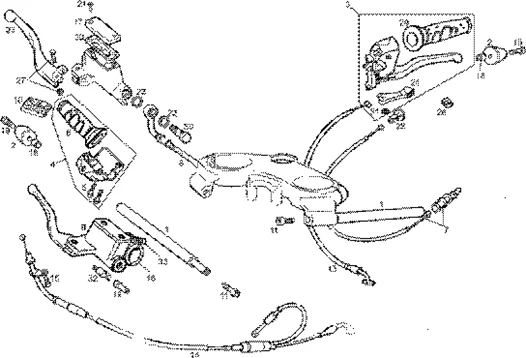

Guidon : T19 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T19.PNG)
1 |
LEFT HALF HANDLEBAR "PIAGGIO GENUINE PART" GILERA GPR 50 1998>2005 -00H00901471- More informationQuantity required : 1 |
||||||
|
2 |
00G02102922 - CONTRE-POIDS DE GUIDON More informationQuantity required : 1 |
||||||
|
3 |
00H02103611 - ENS. PORTE-MANETTE GAUCHE HUNT More informationQuantity required : 1 |
||||||
|
7 |
TRANSMISSION CLUTCH CABLE "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00903301- More informationQuantity required : 1 |
||||||
|
11 |
00000004835 - VIS A TETE ALLEN 8M125X35. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/4/img/63654.jpg)
12 |
00005010760 - CAPUCHON More informationQuantity required : 1 |
||||||
|
13 |
00H00903651 - CABLE ET GAINE AIR. More informationQuantity required : 1 |
||||||
|
14 |
00H00908171 - GAINE ET CABLE DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
15 |
00012051200 - VIS T.RONDE CROIX 5M80X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/6/img/63886.jpg)
16 |
HALF CLAMP- FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 20006>2010 -00D02100901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/4/8/img/64648.jpg)
17 |
FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191- More informationQuantity required : 1 |
||||||
|
19 |
00004154500 - VIS More informationQuantity required : 1 |
||||||
|
23 |
00H00902201 - R-MANETTE DU FREIN AVANT SENDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/3/2/img/64332.jpg)
24 |
CHOKE COMMAND LEVER "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00901661- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/1/img/63901.jpg)
25 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT 2009>2012 (BLACK) -00F00910291- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/2/img/65772.jpg)
26 |
CLUTCH LEVER SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR -177072- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/2/img/63902.jpg)
28 |
SCREW - FOR CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006-, APRILIA 50 RX,SX 2006-2013 (M6 L27MM) -00F00920551- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
30 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
31 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
32 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701- More informationQuantity required : 1 |
||||||
|
33 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
