Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA) DERBI

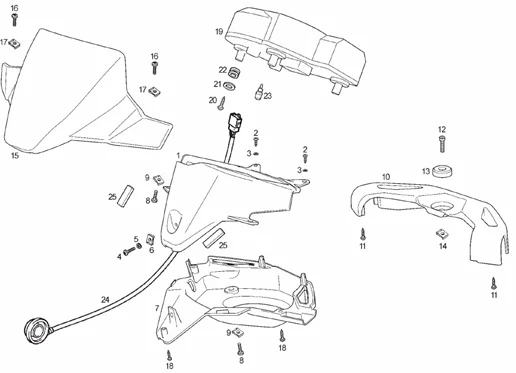

Châssis - parties plastiques - carrosseries : 8 TABLEAU DE BORD
Tableau de bord
Search
00G01016521 - CACHE DIRECTION

1
P2R reference P2R reference 194935
Maker reference Maker reference 00G01016521

00G01016521 - CACHE DIRECTION

More information

Quantity required : 1

2
P2R reference P2R reference
Maker reference Maker reference 000111314015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

3
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 1

00012162000 - BOULON TETE HEX.5M80X15

4
P2R reference P2R reference 63705
Maker reference Maker reference 000121620005

00012162000 - BOULON TETE HEX.5M80X15

More information

Quantity required : 1

00031106000 - RONDELLE PLATE D6

5
P2R reference P2R reference 63726
Maker reference Maker reference 000311060005

00031106000 - RONDELLE PLATE D6

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

862564 - CARCASA INF.GP1 OPEN ¦06

7
P2R reference P2R reference 194936
Maker reference Maker reference 862564

862564 - CARCASA INF.GP1 OPEN -06

More information

Quantity required : 1

00012051200 - VIS T.RONDE CROIX 5M80X12

8
P2R reference P2R reference 63693
Maker reference Maker reference 000120512005

00012051200 - VIS T.RONDE CROIX 5M80X12

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

9
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

00G015016515 - COUVERCLE

10
P2R reference P2R reference 194937
Maker reference Maker reference 00G015016515

00G015016515 - COUVERCLE

More information

Quantity required : 1

11
P2R reference P2R reference
Maker reference Maker reference 000111314015

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

12
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

More information

Quantity required : 1

00G05900711 - ENTRETOISE

13
P2R reference P2R reference 194938
Maker reference Maker reference 00G05900711

00G05900711 - ENTRETOISE

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

00G01506751 - COUVERCLE

15
P2R reference P2R reference 194939
Maker reference Maker reference 00G01506751

00G01506751 - COUVERCLE

More information

Quantity required : 1

00012051200 - VIS T.RONDE CROIX 5M80X12

16
P2R reference P2R reference 63693
Maker reference Maker reference 000120512005

00012051200 - VIS T.RONDE CROIX 5M80X12

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

17
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

18
P2R reference P2R reference
Maker reference Maker reference 000110310015

864097 - CTO.TABLIER GP1 250 LS

19
P2R reference P2R reference 195073
Maker reference Maker reference 864097

864097 - CTO.TABLIER GP1 250 LS

More information

Quantity required : 1

864185 - CTO.TABL.PORTAIN.GP1 250CC LS ING.

19
P2R reference P2R reference 195074
Maker reference Maker reference 864185

864185 - CTO.TABL.PORTAIN.GP1 250CC LS ING.

More information

Quantity required : 1

00011941300 - VIS

20
P2R reference P2R reference 63690
Maker reference Maker reference 000119413005

00011941300 - VIS

More information

Quantity required : 1

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

21
P2R reference P2R reference 69480
Maker reference Maker reference 847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

More information

Quantity required : 1

00H01602941 - CAOUTCHOUC PASSE-CABLE

22
P2R reference P2R reference 64575
Maker reference Maker reference 00H01602941

00H01602941 - CAOUTCHOUC PASSE-CABLE

More information

Quantity required : 1

00G01602581 - R-PORTE-LAMPES

23
P2R reference P2R reference 64003
Maker reference Maker reference 00G01602581

00G01602581 - R-PORTE-LAMPES

More information

Quantity required : 1

SPEEDOMETER ENCODER "PIAGGIO GENUINE PART" 50 NRG 2006>, 125-250 X9/GILERA 50-125 RUNNER -56435R-

24
P2R reference P2R reference 67052
Maker reference Maker reference 56435R

SPEEDOMETER ENCODER "PIAGGIO GENUINE PART" 50 NRG 2006>, 125-250 X9/GILERA 50-125 RUNNER -56435R-

More information

Quantity required : 1

864568 - TOPE ANTIVIBRAC.CARCASA MANILLAR GP1 LS

25
P2R reference P2R reference 194942
Maker reference Maker reference 864568

864568 - TOPE ANTIVIBRAC.CARCASA MANILLAR GP1 LS

More information

Quantity required : 1
