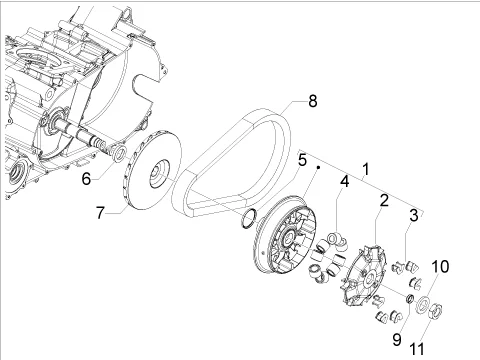

Vehicle Exploded View - GILERA GP 800 2009-2011 GILERA

Moteur : 01.13 POULIE MOTRICE
Poulie motrice
Search
VARIATOR ROLLERS HOUSING "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -877519-

1
P2R reference P2R reference 70665
Maker reference Maker reference 877519

VARIATOR ROLLERS HOUSING "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -877519-

More information

Quantity required : 1
DRIVING PULLEY/VARIATOR "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA SRV 850 -846967-

2
P2R reference P2R reference 69400
Maker reference Maker reference 846967

DRIVING PULLEY/VARIATOR "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA SRV 850 -846967-

More information

Quantity required : 1
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 800 GILERA GP/APRILIA 850 SRV -842331-

3
P2R reference P2R reference 69225
Maker reference Maker reference 842331

VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 800 GILERA GP/APRILIA 850 SRV -842331-

More information

Quantity required : 6
VARIATOR ROLLER "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP (sold per unit) -877514-

4
P2R reference P2R reference 70664
Maker reference Maker reference 877514

VARIATOR ROLLER "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP (SOLD PER UNIT) -877514-

More information

Quantity required : 8
846883 - CIRCLIPS

5
P2R reference P2R reference 69398
Maker reference Maker reference 846883

846883 - CIRCLIPS

More information

Quantity required : 1
831588 - ENTRETOISE

6
P2R reference P2R reference 68970
Maker reference Maker reference 831588

831588 - ENTRETOISE

More information

Quantity required : 1
HALF DRIVING PULLEY "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -847118-

7
P2R reference P2R reference 69467
Maker reference Maker reference 847118

HALF DRIVING PULLEY "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -847118-

More information

Quantity required : 1
BELT "PIAGGIO GENUINE PART" APRILIA 850 SRV, 850 MANA/GILERA GP 800 -845010-

8
P2R reference P2R reference 69339
Maker reference Maker reference 845010

BELT "PIAGGIO GENUINE PART" APRILIA 850 SRV, 850 MANA/GILERA GP 800 -845010-

More information

Quantity required : 1
COMPENSATOR RING ON DRIVING PULLEY "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -846763-

9
P2R reference P2R reference 69396
Maker reference Maker reference 846763

COMPENSATOR RING ON DRIVING PULLEY "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -846763-

More information

Quantity required : 1
841512 - RESSORT

10
P2R reference P2R reference 69190
Maker reference Maker reference 841512

841512 - RESSORT

More information

Quantity required : 1
NUT - FOR DRIVING PULLEY FASTENING "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -841513-

11
P2R reference P2R reference 69191
Maker reference Maker reference 841513

NUT - FOR DRIVING PULLEY FASTENING "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -841513-

More information

Quantity required : 1
