Vehicle Exploded View - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

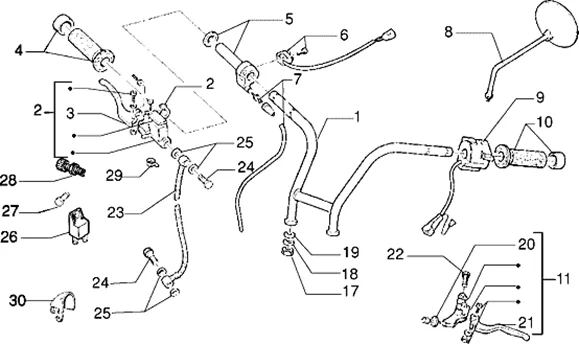

Guidon : T27 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T27.PNG)
4 |
297392 - POIGNEE DROITE More informationQuantity required : 1 |
||||||
|
5 |
463631 - COMMANDE DE GAZ More informationQuantity required : 1 |
||||||
|
6 |
294514 - POUSSOIR DEMARREUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/7/3/5/img/78735.jpg)
8 |
MIRROR- LEFT "PIAGGIO GENUINE PART" GILERA 50 EAGLET -463549- More informationQuantity required : 1 |
||||||
|
9 |
294513 - COMMUTATEUR FEU More informationQuantity required : 1 |
||||||
|
10 |
297391 - POIGNEE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/5/img/65375.jpg)
17 |
015235 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.JPG)
18 |
013962 - RONDELLE S01396200 More informationQuantity required : 4 |
||||||
|
27 |
951634 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
28 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
|
29 |
307166 - COLLIER More informationQuantity required : 1 |
