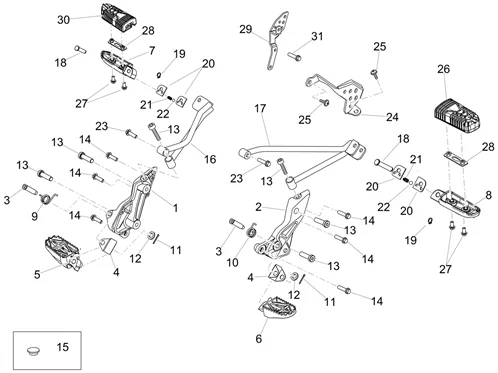

Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2018 (EMEA)

	P2R reference	40187
	Maker reference	856779

SUPPORT FOR RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -856779-

	P2R reference	40188
	Maker reference	856780

SUPPORT FOR LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -856780-

	P2R reference	72602
	Maker reference	AP9100197

AP9100197 - PERNO ROTAZIONE PEDANA

	P2R reference	40726
	Maker reference	859921

FOOTREST PLATE "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD -859921

	P2R reference	42567
	Maker reference	896664

RIGHT FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896664

	P2R reference	42568
	Maker reference	896665

LEFT FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896665

	P2R reference	49899
	Maker reference	AP8145009

LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750 SHIVER 2007>900 SHIVER 2017>, 900 DORSODURO2017>, 125 TUONO 2017>, 650 PEGASO 2005>, 1200 CAPONORD 2014>, 850 MANA 2007> -AP8145009

	P2R reference	203314
	Maker reference	2B010340

2B010340 - RIGHT FOOTREST RH

	P2R reference	203314
	Maker reference	AP8145008

2B010340 - RIGHT FOOTREST RH

	P2R reference	97206
	Maker reference	AP9100196

RETURN SPRING FOR RIDER FOOTREST (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV -AP9100196

	P2R reference	72601
	Maker reference	AP9100195

AP9100195 - MOLLA RICHIAMO PEDANA LATO SX

	P2R reference	66045
	Maker reference	259933

259933 - RESSORT

	P2R reference	97092
	Maker reference	AP8152176

AP8152176 - RONDELLE

	P2R reference	71842
	Maker reference	AP8150236

AP8150236 - VIS

	P2R reference	151683
	Maker reference	AP8152278

AP8152278 - VIS BRIDE M6X16

	P2R reference	45188
	Maker reference	AP8102600

AP8102600 - BOUCHON

	P2R reference	42656
	Maker reference	896936

SUPPORT FOR RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896936-

	P2R reference	42657
	Maker reference	896940

SUPPORT FOR LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896940-

	P2R reference	73402
	Maker reference	CM228401

CM228401 - PIVOT REPOSE-PIEDS

	P2R reference	71404
	Maker reference	AP8120573

STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573-

	P2R reference	71703
	Maker reference	AP8134451

AP8134451 - PLAQUE FDC R-PIED;

	P2R reference	71437
	Maker reference	AP8121133

FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133-

	P2R reference	71163
	Maker reference	AP8101861

BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861-

	P2R reference	71951
	Maker reference	AP8152289

AP8152289 - VIS BRIDE

	P2R reference	41137
	Maker reference	860987

860987 - PROTECTION

	P2R reference	71911
	Maker reference	AP8152055

AP8152055 - VIS

	P2R reference	73476
	Maker reference	GU32443211

RUBBER FOR LEFT FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO -GU32443211-

	P2R reference	71941
	Maker reference	AP8152277

AP8152277 - VIS BRIDE

	P2R reference	73471
	Maker reference	GU32441210

FOOTREST PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -GU32441210

	P2R reference	41649
	Maker reference	890164

890164 - PROTECTION

	P2R reference	73475
	Maker reference	GU32443210

FOOTREST RUBBER "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO -GU32443210-

	P2R reference	71942
	Maker reference	AP8152279

AP8152279 - VIS BRIDE
