Vehicle Exploded View - GILERA DNA 50 DNA GP Experience 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

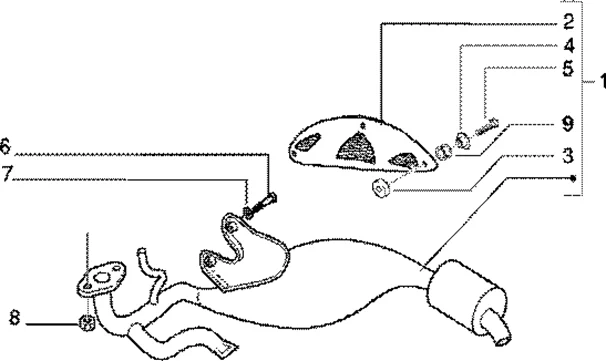

Moteur : T19 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/674/DNA_GP_Experience_1998-2005_T19.PNG)
1 |
833650 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" GILERA 50 DNA -827340- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
3 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
4 |
EXHAUST PROTECTION WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -826118- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
5 |
433800 - BOULON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
6 |
SCREW - FOR EXHAUST 75X8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
7 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/7/9/img/66779.jpg)
9 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300 -488045- More informationQuantity required : 3 |
