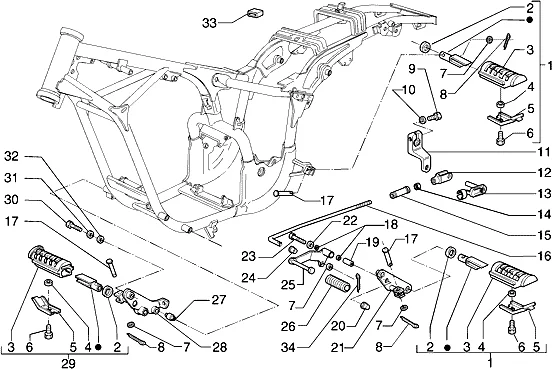

Châssis : T19 CHASSIS
Chassis
Search
967101 - REPOSE PIED

1
P2R reference P2R reference 94009
Maker reference Maker reference 967101

967101 - REPOSE PIED

More information

Quantity required : 2
495325 - VIS

1
P2R reference P2R reference 79268
Maker reference Maker reference 495325

495325 - VIS

More information

Quantity required : 2
348744 - ROULEMENT

2
P2R reference P2R reference 78375
Maker reference Maker reference 348744

348744 - ROULEMENT

More information

Quantity required : 1
953659 - ROULEMENT

3
P2R reference P2R reference 93806
Maker reference Maker reference 953659

953659 - ROULEMENT

More information

Quantity required : 1
965502 - ENTRETOISE

4
P2R reference P2R reference 93998
Maker reference Maker reference 965502

965502 - ENTRETOISE

More information

Quantity required : 4
031084 - BOULON

6
P2R reference P2R reference 65636
Maker reference Maker reference 0310845

031084 - BOULON

More information

Quantity required : 4
319195 - VIS

7
P2R reference P2R reference 66336
Maker reference Maker reference 319195

319195 - VIS

More information

Quantity required : 2
006177 - RONDELLE S00617700

7
P2R reference P2R reference 63806
Maker reference Maker reference 0061775

006177 - RONDELLE S00617700

More information

Quantity required : 4
324919 - SERRURE

8
P2R reference P2R reference 78348
Maker reference Maker reference 324919

324919 - SERRURE

More information

Quantity required : 1
003208 - GOUPILLE

8
P2R reference P2R reference 63782
Maker reference Maker reference 0032085

003208 - GOUPILLE

More information

Quantity required : 4
031091 - VIS

9
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

031091 - VIS

More information

Quantity required : 1
003056 - RONDELLE

10
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

11
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 4
003058 - RONDELLE S00305800

12
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 4
329811 - FOURCHETTE

12
P2R reference P2R reference 78363
Maker reference Maker reference 329811

329811 - FOURCHETTE

More information

Quantity required : 1
031119 - BOULON

13
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

031119 - BOULON

More information

Quantity required : 4
967363 - ECROU

14
P2R reference P2R reference 70925
Maker reference Maker reference 967363

967363 - ECROU

More information

Quantity required : 4
020106 - ECROU S02010600

14
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

020106 - ECROU S02010600

More information

Quantity required : 1
327145 - MANCHON EX 126939

15
P2R reference P2R reference 78351
Maker reference Maker reference 327145

327145 - MANCHON EX 126939

More information

Quantity required : 1
967194 - TIRANT

16
P2R reference P2R reference 94017
Maker reference Maker reference 967194

967194 - TIRANT

More information

Quantity required : 1
965576 - PIVOT

17
P2R reference P2R reference 93999
Maker reference Maker reference 965576

965576 - PIVOT

More information

Quantity required : 4
006716 - JOINT S00671600

18
P2R reference P2R reference 63833
Maker reference Maker reference 0067165

006716 - JOINT S00671600

More information

Quantity required : 2
967076 - PLAQUE

21
P2R reference P2R reference 94003
Maker reference Maker reference 967076

967076 - PLAQUE

More information

Quantity required : 1
006032 - RONDELLE S00603200

22
P2R reference P2R reference 73670
Maker reference Maker reference 0060325

006032 - RONDELLE S00603200

More information

Quantity required : 1
030074 - BOULON S03007400

23
P2R reference P2R reference 65613
Maker reference Maker reference 0300745

030074 - BOULON S03007400

More information

Quantity required : 1
306926 - CAOUTCHOUC

26
P2R reference P2R reference 78303
Maker reference Maker reference 306926

306926 - CAOUTCHOUC

More information

Quantity required : 1
967060 - PLAQUETTE

28
P2R reference P2R reference 94001
Maker reference Maker reference 967060

967060 - PLAQUETTE

More information

Quantity required : 1
967103 - REPOSE PIED

29
P2R reference P2R reference 94010
Maker reference Maker reference 967103

967103 - REPOSE PIED

More information

Quantity required : 2
016626 - RONDELLE

31
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

016626 - RONDELLE

More information

Quantity required : 4
003208 - GOUPILLE

34
P2R reference P2R reference 63782
Maker reference Maker reference 0032085

003208 - GOUPILLE

More information

Quantity required : 1
