Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

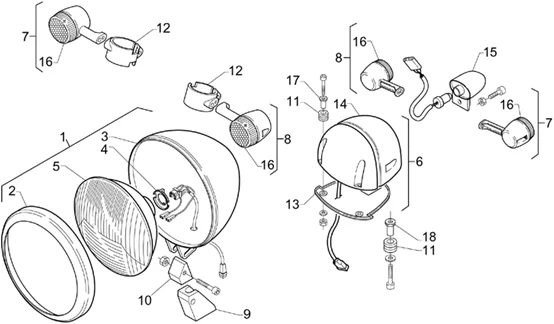

Chassis : 28.11 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/288/Classic_125_1995-1999_28.11.PNG)
3 |
AP8124248 - CALOTTE CHR.FEU AVANT More informationQuantity required : 1 |
||||||
|
4 |
AP8112723 - DOUILLE D'AMP.FEU AV More informationQuantity required : 1 |
||||||
|
4 |
AP8124474 - DOUILLE D'AMP.FEU AV; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/3/3/img/47433.jpg)
7 |
AP8124134 - CLIGNOTANT AV DROITE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/3/4/img/47434.jpg)
8 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" 50-125-250 RS 1999>2005, 125 CLASSIC -AP8124135- More informationQuantity required : 2 |
||||||
|
11 |
AP8112599 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
15 |
AP8124168 - FEU DE PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
16 |
AP8212680 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
17 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
