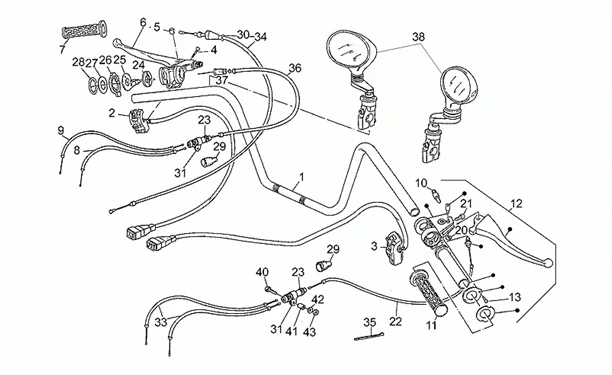

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993 MOTO-GUZZI

Chassis : 33.15 GUIDON-COMMANDE SERIE
Guidon-commande serie
Search
GUIDON

1
P2R reference P2R reference
Maker reference Maker reference GU29600360

GUIDON

2
P2R reference P2R reference
Maker reference Maker reference GU237380705

3
P2R reference P2R reference
Maker reference Maker reference GU237503705

4
P2R reference P2R reference
Maker reference Maker reference GU982604185

GU29608750 - BARILLET DE CABLE

5
P2R reference P2R reference 165255
Maker reference Maker reference GU29608750

GU29608750 - BARILLET DE CABLE

More information

Quantity required : 1

GU29605550 - COMMANDE EMBRAY

6
P2R reference P2R reference 165256
Maker reference Maker reference GU29605550

GU29605550 - COMMANDE EMBRAY

More information

Quantity required : 1

7
P2R reference P2R reference
Maker reference Maker reference GU296030505

GU29133550 - CABLE

8
P2R reference P2R reference 130385
Maker reference Maker reference GU29133550

GU29133550 - CABLE

More information

Quantity required : 1

GU29134050 - CABLE

9
P2R reference P2R reference 130386
Maker reference Maker reference GU29134050

GU29134050 - CABLE

More information

Quantity required : 1

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953-

10
P2R reference P2R reference 67189
Maker reference Maker reference 580953

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953-

More information

Quantity required : 1

11
P2R reference P2R reference
Maker reference Maker reference GU296035505

GU29999250 - COMMANDE DU GAZ

12
P2R reference P2R reference 165258
Maker reference Maker reference GU29999250

GU29999250 - COMMANDE DU GAZ

More information

Quantity required : 1

GU98280410 - VIS

13
P2R reference P2R reference 133019
Maker reference Maker reference GU98280410

GU98280410 - VIS

More information

Quantity required : 1

GU92601206 - ECROU

20
P2R reference P2R reference 165260
Maker reference Maker reference GU92601206

GU92601206 - ECROU

More information

Quantity required : 1

GU98612316 - VIS M6X16

21
P2R reference P2R reference 133101
Maker reference Maker reference GU98612316

GU98612316 - VIS M6X16

More information

Quantity required : 1

GU29117550 - CABLE COM GAZ

22
P2R reference P2R reference 130371
Maker reference Maker reference GU29117550

GU29117550 - CABLE COM GAZ

More information

Quantity required : 1

GU30607910 - DEDOUBLEREUR

23
P2R reference P2R reference 130865
Maker reference Maker reference GU30607910

GU30607910 - DEDOUBLEREUR

More information

Quantity required : 1

BAGUE

24
P2R reference P2R reference
Maker reference Maker reference GU29132050

BAGUE

25
P2R reference P2R reference
Maker reference Maker reference GU291332505

GU29132350 - COMMANDE DU STARTER

26
P2R reference P2R reference 130379
Maker reference Maker reference GU29132350

GU29132350 - COMMANDE DU STARTER

More information

Quantity required : 1

GU29132650 - RONDELLE

27
P2R reference P2R reference 130380
Maker reference Maker reference GU29132650

GU29132650 - RONDELLE

More information

Quantity required : 1

BAGUE

28
P2R reference P2R reference
Maker reference Maker reference GU17751100

BAGUE

GU12717600 - CAPUCHON

29
P2R reference P2R reference 129147
Maker reference Maker reference GU12717600

GU12717600 - CAPUCHON

More information

Quantity required : 2

30
P2R reference P2R reference
Maker reference Maker reference GU230938705

GU19133400 - COLLIER

31
P2R reference P2R reference 165261
Maker reference Maker reference GU19133400

GU19133400 - COLLIER

More information

Quantity required : 2

TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, 1000 GT, STRADA, CALIFORNIA -GU29117750-

33
P2R reference P2R reference 130373
Maker reference Maker reference GU29117750

TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, 1000 GT, STRADA, CALIFORNIA -GU29117750-

More information

Quantity required : 2

GU29093050 - CABLE COM.EMBRAYAGE

34
P2R reference P2R reference 130344
Maker reference Maker reference GU29093050

GU29093050 - CABLE COM.EMBRAYAGE

More information

Quantity required : 1

GU14609650 - COLLIER 3,6X20,6

35
P2R reference P2R reference 129265
Maker reference Maker reference GU14609650

GU14609650 - COLLIER 3,6X20,6

More information

Quantity required : 1

GU61609630 - COLLIER

35
P2R reference P2R reference 165247
Maker reference Maker reference GU61609630

GU61609630 - COLLIER

More information

Quantity required : 1

GU29132850 - CABLE

36
P2R reference P2R reference 130382
Maker reference Maker reference GU29132850

GU29132850 - CABLE

More information

Quantity required : 1

GU29132750 - CAOUTCHOUC

37
P2R reference P2R reference 130381
Maker reference Maker reference GU29132750

GU29132750 - CAOUTCHOUC

More information

Quantity required : 1

38
P2R reference P2R reference
Maker reference Maker reference GU299993605

GU98054220 - VIS

40
P2R reference P2R reference 132886
Maker reference Maker reference GU98054220

GU98054220 - VIS

More information

Quantity required : 2

GU91180607 - ENTRETOISE

41
P2R reference P2R reference 132306
Maker reference Maker reference GU91180607

GU91180607 - ENTRETOISE

More information

Quantity required : 2

GU95000205 - RONDELLE

42
P2R reference P2R reference 132650
Maker reference Maker reference GU95000205

GU95000205 - RONDELLE

More information

Quantity required : 2

GU92630105 - ECROU

43
P2R reference P2R reference 132500
Maker reference Maker reference GU92630105

GU92630105 - ECROU

More information

Quantity required : 2
