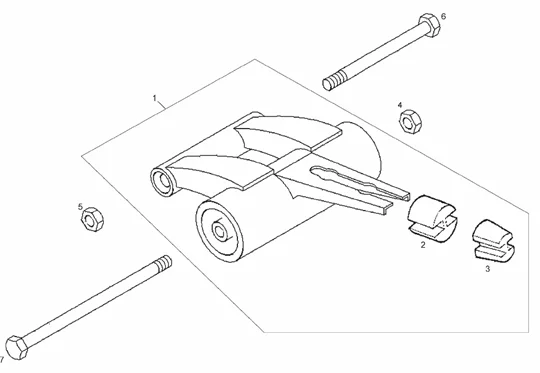

Moteur : 48 ENGINE SUPPORT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1141/Boulevard_50_2T_E2_2009-2014_(EMEA)_48.png)
1 |
601631 - BRAS.DE LA SUSPENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/0/img/66060.jpg)
2 |
SILENTBLOC FOR SWING ARM "PIAGGIO GENUINE PART" 50 NRG, TYPHOON, FLY, LIBERTY/GILERA 50 STALKER, RUNNER -267550 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/1/img/66061.jpg)
3 |
267589 - SILENBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
4 |
231370 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
|
6 |
271779 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/2/img/67042.jpg)
7 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -563977 More informationQuantity required : 1 |
