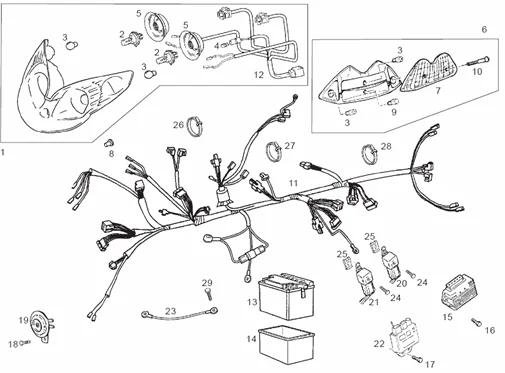

Vehicle Exploded View - DERBI BOULEVARD 200 Boulevard 200 E3 2005-2006 (EMEA)

	P2R reference	194454
	Maker reference	00G02301001

00G02301001 - BLOCOPTIQUE

	P2R reference	194452
	Maker reference	00G02302001

00G02302001 - BLOCOPTIQUE

	P2R reference	154568
	Maker reference	00G01000131

00G01000131 - AMPOULE 12V-35/35

	P2R reference	67298
	Maker reference	584332

LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332-

	P2R reference	194455
	Maker reference	00G02301331

00G02301331 - AMPOULE 12V-5W

	P2R reference	194456
	Maker reference	00G05702141

00G05702141 - FAISCEAUDE CÂBLES

	P2R reference	194457
	Maker reference	00G02301601

00G02301601 - FEU AR.

	P2R reference	194459
	Maker reference	00G01005341

00G01005341 - TRANSPARENT

	P2R reference	194460
	Maker reference	00H01802751

00H01802751 - BOUCHON

	P2R reference	65799
	Maker reference	181747

181747 - AMPOULE 12V 5W

	P2R reference	66245
	Maker reference	290944

290944 - VIS

	P2R reference	194462
	Maker reference	00G01035301

00G01035301 - INSTALLATION ELECTRIQUE

	P2R reference	194463
	Maker reference	00G05701011

00G05701011 - FAISCEAU PHARE TEMOIN

	P2R reference	67316
	Maker reference	584810

BATTERY YUASA 12V/9AH YB9-B "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY -584810

	P2R reference	66312
	Maker reference	299047

BATTERY COMPARTMENT "PIAGGIO GENUINE PART" 50-125 VESPA LX, LXV -299047-

	P2R reference	67187
	Maker reference	58090R5
	Replaced by référence 221753

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5-

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	63705
	Maker reference	000121620005

00012162000 - BOULON TETE HEX.5M80X15

	P2R reference	63705
	Maker reference	000121620005

00012162000 - BOULON TETE HEX.5M80X15

	P2R reference	72984
	Maker reference	CM071803

HORN "PIAGGIO GENUINE PART" -CM071803-

	P2R reference	67258
	Maker reference	58246R

RELAY FOR ELECTRIC STARTER 12V 30A "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -58246R-

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	67801
	Maker reference	638691

638691 - BOBINE H.T.

	P2R reference	67212
	Maker reference	581310

581310 - PROTECTION

	P2R reference	63689
	Maker reference	000112413005

00011241300 - BOULON

	P2R reference	194466
	Maker reference	00G01500371

00G01500371 - ECROU

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	64088
	Maker reference	00G03600991

00G03600991 - BOULON SERRAGE TURBINE H.(6X16
