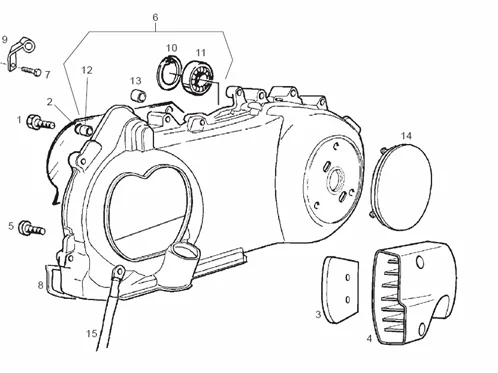

Moteur : 20 CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1136/Boulevard_125-150_E2_2004-2007_(EMEA_NAFTA)_20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
1 |
430264 - VIS More informationQuantity required : 1 |
||||||
2 |
843708 - DIAPHRAGME POUR AIR CHAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/3/img/69213.jpg)
3 |
AIR FILTER - FOR TRANSMISSION HOUSING AIR FLOW "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -842093 More informationQuantity required : 1 |
||||||
|
4 |
842090 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
5 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/7/img/69187.jpg)
6 |
TRANSMISSION COVER "PIAGGIO GENUINE PART" 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC -8413805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
7 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 1 |
||||||
|
8 |
483783 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/0/img/67230.jpg)
9 |
581767 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
10 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
11 |
BEARING (15.35.11) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -4789853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
12 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
13 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860 More informationQuantity required : 1 |
||||||
|
14 |
CM155102 - COUVERCLE More informationQuantity required : 1 |
||||||
|
15 |
581310 - PROTECTION More informationQuantity required : 1 |
