Vehicle Exploded View - APRILIA BICI ELETTRICA 50 Bici Elettrica Enjoy 01

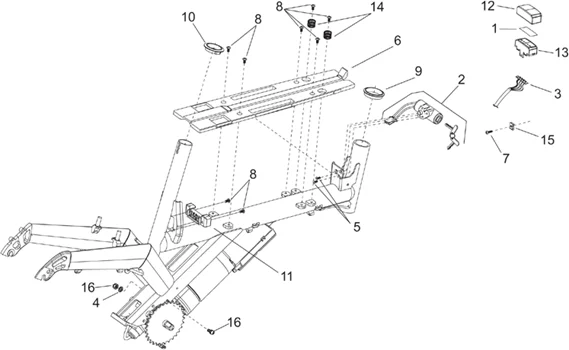

Chassis : 28.06 CHASSIS II

Chassis II

Search

1

	P2R reference
	Maker reference	AP8000108

Décalco

2

	P2R reference	45076
	Maker reference	AP8000046

AP8000046 - BLOC DEMARREUR-BLOC

More information

Quantity required : 1

3

	P2R reference
	Maker reference	AP8000048

Voyant de contrôle

4

	P2R reference
	Maker reference	AP8000090

Rondelle

5

	P2R reference
	Maker reference	AP8000243

Vis

6

	P2R reference
	Maker reference	AP8000052

Plaque sup.bte batt

7

	P2R reference
	Maker reference	AP8000244

Vis

8

	P2R reference
	Maker reference	AP8000060

Vis

9

	P2R reference
	Maker reference	AP8000036

Pare-poussière

10

	P2R reference
	Maker reference	AP8000037

Pare-poussière

11

	P2R reference
	Maker reference	AP8000051

Plaque batterie

12

	P2R reference
	Maker reference	AP8000058

Couvercle voyants

13

	P2R reference
	Maker reference	AP8000110

Boîtier voyants

13

	P2R reference
	Maker reference	AP8000199

Boîtier voyants

14

	P2R reference
	Maker reference	AP8000059

Ressort

15

	P2R reference
	Maker reference	AP8000117

Clip

16

	P2R reference
	Maker reference	AP8000042

Vis+ecrou
