Vehicle Exploded View - MOTO-GUZZI BELLAGIO 940 940 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

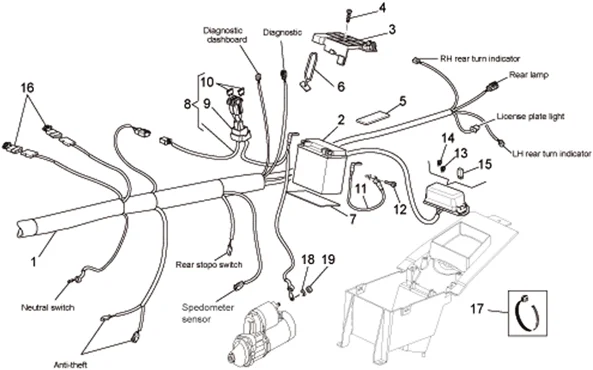

Chassis : 33.34 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/463/Bellagio_940_2007-2013_33.34.PNG)
1 |
978366 - GRUPPO PRINCIPALE CAVI 940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/1/img/73441.jpg)
2 |
BATTERY (12V YTX 20AH-BS) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, GRISO -GU05704531 More informationQuantity required : 1 |
||||||
|
3 |
883819 - COPERCHIO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
4 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 2 |
||||||
|
5 |
AP8117200 - EPONGE ADHESIVE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.jpg)
6 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 2 |
||||||
|
7 |
AP8144553 - GOMMA INF. APPOGGIO BATTERIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/9/0/2/img/128902.jpg)
8 |
WIRING FOR FUSE HOLDER "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO, 1200 SPORT, 850-1100-1200 BREVA -GU05747830- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
9 |
AP8112811 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
10 |
CM225730 - FUSIBLE More informationQuantity required : 3 |
||||||
|
11 |
978505 - CAVO MASSA ACCUMULATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
12 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
13 |
977769 - FUSIBILE LAM MINI 3A More informationQuantity required : 3 |
||||||
|
14 |
977772 - FUSIBLE 15A More informationQuantity required : 5 |
||||||
|
15 |
GU01731760 - RELE' DEV. SIEMENS A1001A403 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
16 |
SECURITY DIODE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC -AP8212588 More informationQuantity required : 2 |
||||||
|
17 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 23 |
||||||
|
17 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 5 |
||||||
|
17 |
GU93304360 - COLLIER 7,6X380 More informationQuantity required : 2 |
||||||
|
18 |
GU95129131 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
GU92609408 - ECROU M8X1,25 More informationQuantity required : 1 |
