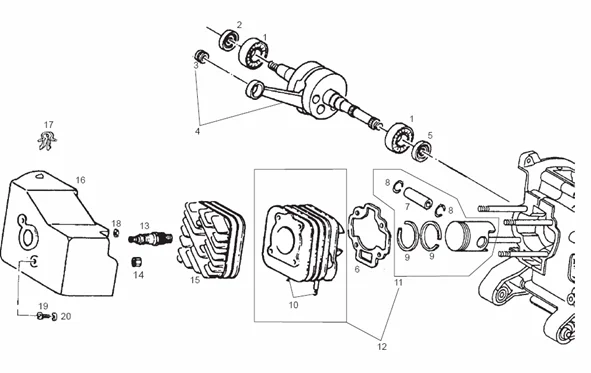

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 City E2 2003-2006 (EMEA)

	P2R reference	66397
	Maker reference	431125

CRANKSHAFT BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 1995>, FLY 2 STROKE 2005>, LIBERTY 1998>, NRG 1998>, VESPA LX 2 STROKE 2005> ZIP 2000>/GILERA 50 STALKER 1997>, RUNNER 1997>/APRILIA 50 SR-MOTARD 2010> -431125

	P2R reference	66614
	Maker reference	482315

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON IGNITION SIDE) 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY -482315

	P2R reference	66983
	Maker reference	500503

PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500503-

	P2R reference	66981
	Maker reference	500501

PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500501

	P2R reference	66984
	Maker reference	500504

PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500504-

	P2R reference	66982
	Maker reference	500502

PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500502-

	P2R reference	66413
	Maker reference	4316255

CRANKSHAFT "PIAGGIO GENUINE PART" 50 ZIP 1997>, TYPHOON 1996>, LIBERTY 1998>, FLY 2005>, NRG 1998>, VESPA LX 2005>/GILERA 50 STALKER 1997>, RUNNER 19/APRILIA 50 SR MOTARD 2012> -4316255

	P2R reference	66613
	Maker reference	482314

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY -482314-

	P2R reference	66176
	Maker reference	286810

CYLINDER BASE GASKET "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LIBERTY, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR -286810

	P2R reference	65982
	Maker reference	239404

PISTON PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC --239404-

	P2R reference	65983
	Maker reference	239455

STOP RING FOR PISTON "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE -239455-

	P2R reference	68541
	Maker reference	825416

PISTON RING- "PIAGGIO GENUINE PART" 50 TYPHOON 1995>, NRG 1998>, ZIP 2000>, VESPA LX 2005>, LIBERTY 1998>,FLY 2 STROKE 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 1997>, RUNNER 1997> (VENDU A L UNITE) -825416

	P2R reference	65981
	Maker reference	239397

EXHAUST STUD BOLT M6 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -239397-

	P2R reference	66755
	Maker reference	4878020003

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-3(O) -4878020003-

	P2R reference	66753
	Maker reference	4878020001

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-1(M) -4878020001-

	P2R reference	66756
	Maker reference	4878020004

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-4(P) -4878020004-

	P2R reference	68521
	Maker reference	825185

825185 - GR.PISTON 2M EX 484415

	P2R reference	66754
	Maker reference	4878020002

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-2(N) -4878020002-

	P2R reference	166942
	Maker reference	825182

825182 - GR.PISTON 1ERE MAJ TYPHOON EX 484409

	P2R reference	68946
	Maker reference	831116

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, TYPHOON, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR (LIVRE SANS JOINT) -831116

	P2R reference	66520
	Maker reference	438034

SPARK PLUG CHAMPION RN2C "PIAGGIO GENUINE PART" 50 FLY 2STROKE, LIBERTY 2STROKE, NRG, TYPHOON, VESPA LX 2STROKE/GILERA 50 STALKER, RUNNER -438034-

	P2R reference	66194
	Maker reference	288531

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE -288531-

	P2R reference	66174
	Maker reference	2865344

CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 STROKE -2865344

	P2R reference	69364
	Maker reference	845692

CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50CC 2 STROKE -845692-

	P2R reference	65739
	Maker reference	140435

140435 - RESSORT

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

	P2R reference	109085
	Maker reference	1A003108

1A003108 - VIS

	P2R reference	65664
	Maker reference	0783075

078307 - RONDELLE
