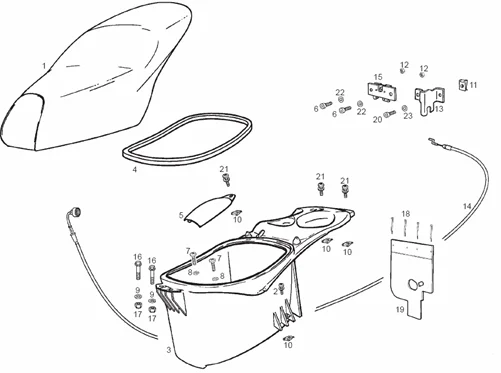

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50-100 4T E2 2004-2006 (EMEA)

	P2R reference	109017
	Maker reference	00G00623014

00G00623014 - ENSEMBLE SELLE

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	187314
	Maker reference	00G06308721

00G06308721 - ENSEMB.PORTE-CASQUE AVEC PROF.

	P2R reference	64148
	Maker reference	00G06301551

00G06301551 - PROFIL PORTE-CASQUE

	P2R reference	187315
	Maker reference	00G01802221

00G01802221 - COUVERCLE ACCES CARBURATEUR

	P2R reference	63614
	Maker reference	000020520515

SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

	P2R reference	187316
	Maker reference	00H00500212

00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H.

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	187317
	Maker reference	00G06801051

00G06801051 - BUTEE ARR.CABLE FERM.SELLE H.

	P2R reference	187318
	Maker reference	00G00602181

00G00602181 - SOUS-EN.CABLE FERMETURE SELLE

	P2R reference	64153
	Maker reference	00G06800501

00G06800501 - PLAQUE VERROUILLAGE DE LA SELL

	P2R reference	64088
	Maker reference	00G03600991

00G03600991 - BOULON SERRAGE TURBINE H.(6X16

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	187319
	Maker reference	00G02200911

00G02200911 - PROTECTEUR CARBURATEUR

	P2R reference	69497
	Maker reference	847227

847227 - BOULON

	P2R reference	63923
	Maker reference	00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	64840
	Maker reference	00H03800722

00H03800722 - RONDELLE
