Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 E4 Model Year 2019 2019-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

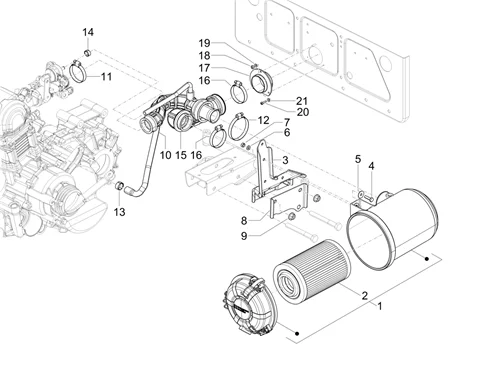

Moteur : 01.20 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/991/Ape_Calessino_200_E4_Model_Year_2019_2019-2021_01.20.png)
1 |
B073441 - FILTRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/9/2/img/159292.JPG)
2 |
AIR FILTER"PIAGGIO GENUINE PART" 200 APE -B076112- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/9/7/6/img/75976.jpg)
4 |
1C000291 - VIS M6X22 More informationQuantity required : 1 |
||||||
|
5 |
013755 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
6 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
7 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
|
10 |
1A009168 - DURITE ESSENCE More informationQuantity required : 1 |
||||||
|
11 |
604553 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
604756 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
D9004467161 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.JPG)
14 |
CM001913 - COLLIER More informationQuantity required : 1 |
||||||
|
15 |
1A009164 - BOITIER DU FILTRE More informationQuantity required : 1 |
||||||
|
16 |
604756 - COLLIER More informationQuantity required : 2 |
||||||
|
17 |
B024937 - TUYAU FILTRE ATD-T1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
18 |
020104 - ECROU S02010400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
19 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
20 |
568692 - VIS More informationQuantity required : 2 |
||||||
|
21 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
