Eclatés de véhicule - VESPA VESPA PX 150 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

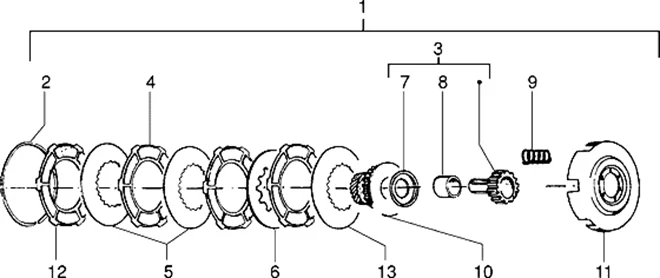

Moteur : T8 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/726/Vespa_PX_150_E_1998-2005_T8.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/5/1/7/img/77517.JPG)
1 |
EMBRAYAGE COMPLET ORIGINE PIAGGIO 125 VESPA PX 2007> -2867635 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/5/9/img/74059.jpg)
2 |
CIRCLIPS DE MAINTIEN DES DISQUES EMBRAYAGE ORIGINE PIAGGIO VESPA 125-150-200 PX 1998>2017 -038477 Plus d'informationsQuantité requise : 1 |
||||||
3 |
ENGRENAGE D'EMBRAYAGE ORIGINE PIAGGIO 125 VESPA PX -2850795- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/8/9/img/140089.jpg)
4 |
SUPPORT/ PORTE PLAQUE ORIGINE PIAGGIO 300-350-400-500 MP3, BEVERLY 2016> -1B004123 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/5/2/0/img/77520.jpg)
5 |
DISQUE EMBRAYAGE MENE MAXISCOOTER ORIGINE PIAGGIO 125 VESPA PX 1998> -286782 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/6/7/img/76767.jpg)
6 |
DISQUE MENANT EMBRAYAGE ORIGINE PIAGGIO 125 VESPA PX -237271 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/3/5/img/76735.jpg)
7 |
COUPELLE/RONDELLE (29X40.5X2) EMBRAYAGE ORIGINE PIAGGIO 125 PX VESPA -235615 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
DOUILLE EMBRAYAGE ORIGINE PIAGGIO VESPA 125 PX -0593652- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/5/8/5/img/77585.jpg)
9 |
RESSORT EMBRAYAGE ORIGINE PIAGGIO 150 PX VESPA, 200 COSA -289603 Plus d'informationsQuantité requise : 8 |
||||||
|
10 |
2867624 - ENGRENAGE EMB (200) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/9/img/93019.jpg)
11 |
CAGE/CLOCHE EMBRAYAGE ORIGINE PIAGGIO 125 PX VESPA -845498 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/6/6/img/76766.jpg)
12 |
DISQUE EMBRAYAGE MENANT ORIGINE PIAGGIO 125 VESPA PX 1998> -237268 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/6/8/img/76768.jpg)
13 |
DISQUE MENE EMBRAYAGE ORIGINE PIAGGIO 125 VESPA PX -237272 Plus d'informationsQuantité requise : 1 |
