Eclatés de véhicule - VESPA VESPA PRIMAVERA 50 E5 Officina 8 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

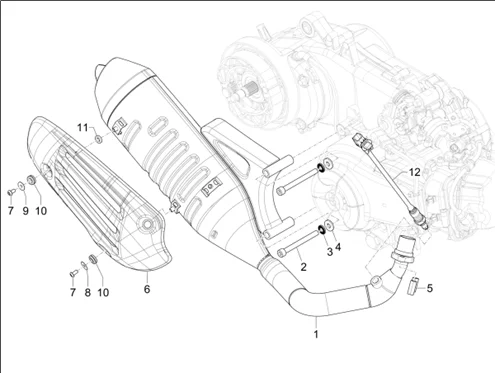

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1325/Vespa_Primavera_50_E5_Officina_8_2025_EMEA_01.42.png)
1 |
1A025121 - COMPLETE MUFFLER WITH MANIFOLD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/5/img/69235.jpg)
2 |
VIS BTR (8X80) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 CC -842502 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
3 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/7/0/img/69570.jpg)
4 |
RONDELLE PLATE (8X19,3X2,5) ORIGINE PIAGGIO COMMUN A LA GAMME -848452 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/7/img/69067.jpg)
5 |
ECROU D'ECHAPPEMENT COTE CYLINDRE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY -833494 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/6/9/4/img/153694.jpg)
6 |
PROTECTION/TOLE DE POT ECHAPPEMENT NOIR MAT ORIGINE PIAGGIO 50-125 VESPA SPRINT, PRIMAVERA 2016<2020 -1A011836 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
7 |
VIS BTR TETE BOMBEE (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -651014 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
8 |
RONDELLE PLATE (5X16) TOLE ECHAPPEMENT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -827526 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
1A023658 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
10 |
CAOUTCHOUC PASSE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -841782 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
11 |
RONDELLE ENTRETOISE PROTECTION ECHAPPEMENT ORIGINE PIAGGIO APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/5/img/171615.jpg)
12 |
SONDE LAMBDA ORIGINE PIAGGIO APRILIA, MOTO GUZZI, PIAGGIO, VESPA EURO5 -1A014335 Plus d'informationsQuantité requise : 1 |
