Eclatés de véhicule - VESPA VESPA PRIMAVERA 125 4T 3V ie ABS E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

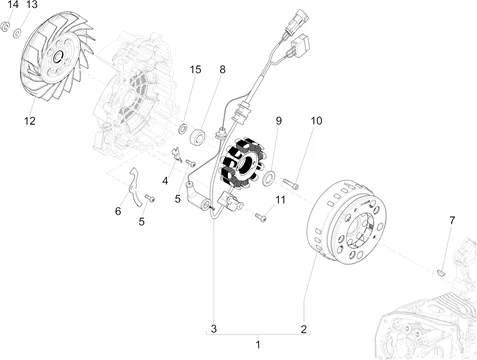

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1001/Vespa_Primavera_125_4T_3V_ie_ABS_E5_2020_(EMEA)_01.21.png)
1 |
1A0065954 - VOLANT MAGNETIQUE COMPLET Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A006480 - ROTOR COMPLET AVEC BUSE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/6/3/img/92163.JPG)
3 |
STATOR ORIGINE PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016>2020 -680205- Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
B018106 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111- Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
B018106 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
B018105 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
7 |
CLAVETTE ALLUMAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -000097- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
841047 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B018464 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
10 |
VIS BTR (5X25) AVEC FREIN FILET ORIGINE PIAGGIO COMMUN A LA GAMME -1A003115- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.JPG)
11 |
VIS CRUCIFORME (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003109- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/0/img/75350.JPG)
12 |
TURBINE/VENTILATEUR ALLUMAGE ORIGINE PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013> -1A001379- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/6/img/70536.jpg)
14 |
874557 - ECROU BRIDE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
B015807 - RONDELLE Plus d'informationsQuantité requise : 1 |
