Eclatés de véhicule - VESPA VESPA LX 150 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

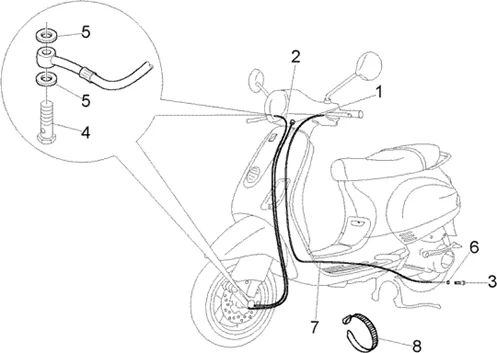

Transmisisons : T40 TRANSMISSIONS-TUYAU FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/706/Vespa_LX_150_1998-2005_T40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/5/img/86945.jpg)
1 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR (FIXATION COMPTEUR PAR VIS) ORIGINE PIAGGIO VESPA 50-125 LX 2005> -649347- Plus d'informationsQuantité requise : 1 |
||||||
2 |
666121 - TUYAU * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
3 |
ECROU REGLAGE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -270310- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
4 |
VIS BANJO POUR FREIN ORIGINE PIAGGIO COMMUN A LA GAMME -265451- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
JOINT CUIVRE (10X14X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
6 |
PIVOT TRANSMISSION FREIN ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -179640- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/0/img/80030.jpg)
7 |
CABLE/COMMANDE/TRANSMISSION DE FREIN ARRIERE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, NRG POWER DT -564217- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
8 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298- Plus d'informationsQuantité requise : 1 |
