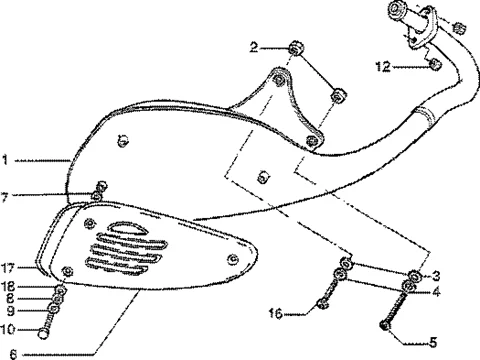

Eclatés de véhicule - VESPA VESPA ET2 50 1998-2005
Châssis : T17 SILENCIEUX
T17 SILENCIEUX
![]() 1 |
484001 - POT ECHAP Plus d'informationsQuantité requise : 1 |
||||||
![]() 1 |
8257145 - SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
![]() 1 |
827519 - SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
![]() 1 |
B0186775 - POT D'ECHAPPEMENT * Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245- Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187- Plus d'informationsQuantité requise : 2 |
||||||
![]() 4 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187- Plus d'informationsQuantité requise : 2 |
||||||
![]() 5 |
297582 - VIS Plus d'informationsQuantité requise : 2 |
||||||
![]() 6 |
PROTECTION/TOLE DE POT ORIGINE PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS -8454655- Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
ENTRETOISE CAOUTCHOUC (7X13X2) ORIGINE PIAGGIO COMMUN A LA GAMME -479882- Plus d'informationsQuantité requise : 6 |
||||||
![]() 7 |
RONDELLE ENTRETOISE PROTECTION ECHAPPEMENT ORIGINE PIAGGIO APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117 Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
827178 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
![]() 8 |
RONDELLE PLATE (5.3X14X1) ORIGINE PIAGGIO COMMUN A LA GAMME -097733 Plus d'informationsQuantité requise : 3 |
||||||
![]() 8 |
RONDELLE ENTRETOISE PROTECTION ECHAPPEMENT ORIGINE PIAGGIO APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117 Plus d'informationsQuantité requise : 3 |
||||||
![]() 8 |
827178 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
843213 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
![]() 9 |
JOINT OBTURATEUR ECHAPPEMENT COMMUN A L ENSEMBLE DE LA GAMME -016195 Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 3 |
||||||
![]() 9 |
RONDELLE PLATE (5.3X14X1) ORIGINE PIAGGIO COMMUN A LA GAMME -097733 Plus d'informationsQuantité requise : 3 |
||||||
![]() 9 |
RONDELLE PLATE (5X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -828583 Plus d'informationsQuantité requise : 3 |
||||||
![]() 9 |
RONDELLE PLATE (6X18) ORIGINE PIAGGIO COMMUN A LA GAMME -841821- Plus d'informationsQuantité requise : 3 |
||||||
![]() 10 |
VIS CRUCIFORME (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -430264 Plus d'informationsQuantité requise : 3 |
||||||
![]() 10 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -433800 Plus d'informationsQuantité requise : 3 |
||||||
![]() 10 |
|
||||||
![]() 10 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267- Plus d'informationsQuantité requise : 3 |
||||||
![]() 10 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267- Plus d'informationsQuantité requise : 3 |
||||||
![]() 11 |
|
||||||
![]() 12 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245- Plus d'informationsQuantité requise : 2 |
||||||
![]() 13 |
|
||||||
![]() 16 |
VIS BTR (8X67) ORIGINE PIAGGIO COMMUN A LA GAMME -478761 Plus d'informationsQuantité requise : 1 |
||||||
![]() 17 |
827050 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
![]() 18 |
CAOUTCHOUC PASSE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -841782- Plus d'informationsQuantité requise : 3 |
