Eclatés de véhicule - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

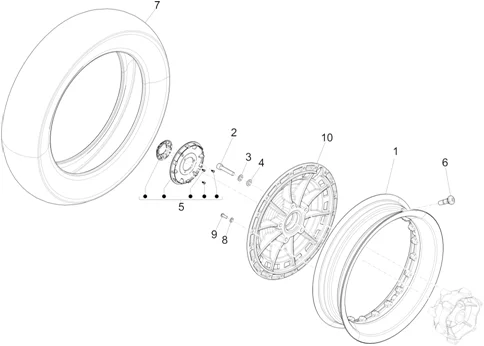

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_04.11.PNG)
1 |
1C0017875 - ROUE AVANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
2 |
VIS BTR (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -149104- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
4 |
RONDELLE PLATE (8.2X13X2) ORIGINE PIAGGIO COMMUN A LA GAMME -016604- Plus d'informationsQuantité requise : 5 |
||||||
|
5 |
1C001781 - COUVRE MOYEU ROUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
6 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -597679- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
666404 - PNEU 120/70-12" MICHELIN CITY GRIP Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1C000742 - PNEU 120/70-12" FIRM MICHELIN Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
003055 - RONDELLE Plus d'informationsQuantité requise : 20 |
||||||
|
9 |
669057 - BOULON Plus d'informationsQuantité requise : 20 |
||||||
|
10 |
1C0017885 - MOYEU ROUE Plus d'informationsQuantité requise : 1 |
