Eclatés de véhicule - DERBI VARIANT SPORT 125 Variant Sport 125 4T E3 2012 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

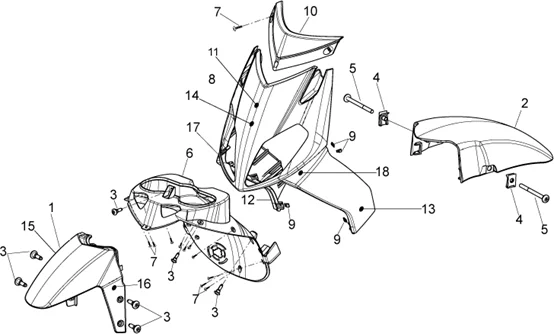

Cadre : 28.07 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1065/Variant_Sport_125_4T_E3_2012_(APAC_EMEA_NAFTA)_28.07.png)
1 |
853059 - GARDE-BOUE AV Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
85305900R7 - GARDE-BOUE AVANT PEINT ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
GARDE-BOUE AVANT ORIGINE PIAGGIO APRILIA 50-125 SPORT CITY ONE 2008>2011 NOIR -8530590090- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
8530590087 - GARDE-BOUE AVANT BLANC Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
853060 - GARDE-BOUE AV Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
85306000XH1 - GARDE-BOUE AV.GRIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
5 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
89023900XH1 - LOGEMENT ROUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
7 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178606- Plus d'informationsQuantité requise : 13 |
||||||
|
8 |
TABLIER AVANT ORIGINE PIAGGIO 50-125 CITY ONE APRILIA 2008>2011 BRUT -853069 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
85306900R7 - TABLIER AV. PEINT ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
TABLIER AVANT NOIR ORIGINE APRILIA 50-125 SPORT CITY ONE 2008>2011 -8530690090 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
8530690087 - TABLIER AV BLANC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
9 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/1/img/69711.jpg)
10 |
CACHE SUPERIEUR DE FACE AVANT ORIGINE PIAGGIO 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -85643600XH1- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
856436 - PROTECTION SUP. Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
867626 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
677128 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
677136 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
677137 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
677129 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
677117 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
677115 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
677130 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
677131 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
677116 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
677118 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
677119 - DECALCO Plus d'informationsQuantité requise : 1 |
