Eclatés de véhicule - MOTO GUZZI V7 750 V7 II Special ABS 750 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

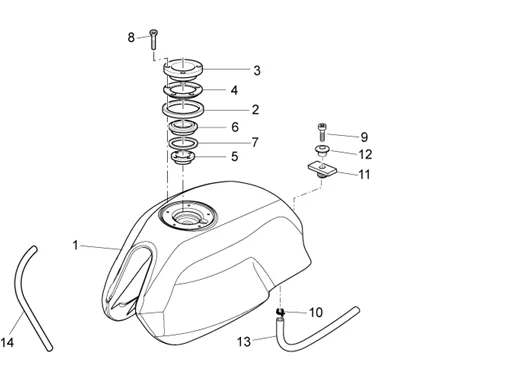

Chassis : 33.12 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/533/V7_II_Special_ABS_750_2015_33.12.PNG)
1 |
2H000664000YA4 - RESERVOIR ESS. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2H000664000YR6 - RESERVOIR ESS. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
887207 - SERBATOIO V7 LAMIERA Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2H000019000XN2 - SERBATOIO NERO V7 MY13 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2H000020000XN2 - SERBATOIO NERO V7 MY13 USA Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2H000663000YA4 - SERBATOIO BENZ. AZZURRO. '15 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2H000663000YR6 - SERBATOIO BENZ. ROSSO DAYTONA '15 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU03102400 - GUARNIZIONE FLANGIA Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU03101900 - FLANGIA Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU03103500 - ANELLO Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
883502 - RIDUZIONE SERBATOIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/4/0/img/102440.jpg)
5 |
REDUCTION DE RESERVOIR (38) ORIGINE MOTO GUZZI BELLAGIO, V7, NEVADA 2016< -GU03101720 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU03102200 - GHIERA TAPPO Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU03101600 - GUARNIZIONE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
VIS BTR TETE BOMBE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU03103200 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
9 |
VIS BTR (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -600123 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
10 |
COLLIER DURITE (10,1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101595 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
11 |
CAOUTCHOUC RESERVOIR ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA/MOTO GUZZI -AP8120557 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
12 |
DOUILLE EN T ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121673 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
14 |
2B000909 - JOINT Plus d'informationsQuantité requise : 1 |
