Eclatés de véhicule - MOTO GUZZI V35 350 V 35 C - V 50 C 350 1982-1986

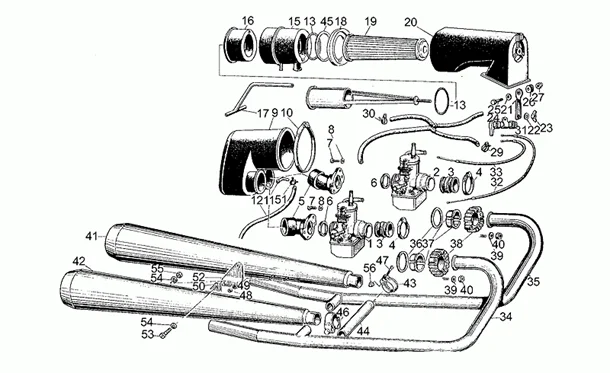

Chassis : 33.17 GROUPE ÉCHAPP.-ASPIRATION
33.17 GROUPE ÉCHAPP.-ASPIRATION
1 |
GU19112680 - CARBURATEUR Plus d'informationsQuantité requise : 1 |
||||||
2 |
GU19112681 - CARBURATEUR GAUCHE PHBH 28 BS Plus d'informationsQuantité requise : 1 |
||||||
3 |
GU19114320 - MANCHON Plus d'informationsQuantité requise : 2 |
||||||
3 |
MANCHON CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI 2001< -GU31114383 Plus d'informationsQuantité requise : 2 |
||||||
4 |
GU93305032 - COLLIER 32X52X8 Plus d'informationsQuantité requise : 4 |
||||||
5 |
GU19114400 - CORNET D ADMISSION Plus d'informationsQuantité requise : 2 |
||||||
5 |
GU19114480 - COLLECTEUR Plus d'informationsQuantité requise : 2 |
||||||
6 |
GU19114680 - BAGUE D'ETANCHEITE Plus d'informationsQuantité requise : 2 |
||||||
6 |
GU90706315 - BAGUE D'ETANCHEITE Plus d'informationsQuantité requise : 2 |
||||||
7 |
GU98054214 - VIS Plus d'informationsQuantité requise : 4 |
||||||
8 |
GU95000205 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
9 |
GU19114300 - COLLECTEUR ASPIRATION Plus d'informationsQuantité requise : 1 |
||||||
10 |
GU93305092 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
11 |
GU17114650 - RACCORD COUDE Plus d'informationsQuantité requise : 1 |
||||||
12 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 Plus d'informationsQuantité requise : 1 |
||||||
13 |
JOINT TORIQUE DE COUPLE CONIQUE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90706552 Plus d'informationsQuantité requise : 2 |
||||||
15 |
GU19156701 - BOITIER RENIFLARD Plus d'informationsQuantité requise : 1 |
||||||
16 |
GU19156900 - ELEMENT AR Plus d'informationsQuantité requise : 1 |
||||||
17 |
GU19156001 - TUYAU DE RENIFL.INT Plus d'informationsQuantité requise : 1 |
||||||
18 |
GU17113450 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
19 |
FILTRE A AIR ORIGINE MOTO GUZZI 350 NEVADA, NTX, 1000 SP, V35, V50 -GU17113651 Plus d'informationsQuantité requise : 1 |
||||||
20 |
GU17114050 - CHAMBRE DE FILTRE A Plus d'informationsQuantité requise : 1 |
||||||
21 |
|
||||||
22 |
RONDELLE ELASTIQUE (5.3X10X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95129100 Plus d'informationsQuantité requise : 1 |
||||||
23 |
GU92670305 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
24 |
|
||||||
25 |
RONDELLE PLATE (5.25X14X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95100059 Plus d'informationsQuantité requise : 2 |
||||||
26 |
CAOUTCHOUC PASSE FIL (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91551086 Plus d'informationsQuantité requise : 1 |
||||||
27 |
ECROU AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92630105 Plus d'informationsQuantité requise : 1 |
||||||
29 |
COLLIER POUR TUYAU DE 13MM ORIGINE PIAGGIO COMMUN A LA GAMME -CM002907 Plus d'informationsQuantité requise : 2 |
||||||
30 |
GU61108500 - COLLIER D9 Plus d'informationsQuantité requise : 2 |
||||||
31 |
GU23133100 - STARTER Plus d'informationsQuantité requise : 1 |
||||||
32 |
GU19133500 - CABLE DE STARTER Plus d'informationsQuantité requise : 1 |
||||||
33 |
GU19134000 - CABLE STARTER CARB. G Plus d'informationsQuantité requise : 1 |
||||||
34 |
|
||||||
35 |
|
||||||
36 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65 -GU19025280 Plus d'informationsQuantité requise : 2 |
||||||
36 |
GU61025200 - JOINT Plus d'informationsQuantité requise : 2 |
||||||
37 |
GU61025400 - ENTRETOISE Plus d'informationsQuantité requise : 4 |
||||||
38 |
GU19121050 - FLASQUE Plus d'informationsQuantité requise : 2 |
||||||
39 |
RONDELLE RESSORT (6.7X11.8X0.4) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61013800 Plus d'informationsQuantité requise : 4 |
||||||
40 |
GU92701062 - ECROU Plus d'informationsQuantité requise : 4 |
||||||
41 |
GU19122936 - SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
42 |
GU19123036 - SILENCIEUX D Plus d'informationsQuantité requise : 1 |
||||||
43 |
GU61126920 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
44 |
GU19121135 - TUYAU DE LIAISON Plus d'informationsQuantité requise : 1 |
||||||
44 |
|
||||||
45 |
GU19113900 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
46 |
GU19123435 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
47 |
GU98692325 - VIS TCEI M6X25 Plus d'informationsQuantité requise : 2 |
||||||
48 |
GU92602208 - ECROU M8X1,25 Plus d'informationsQuantité requise : 4 |
||||||
49 |
RONDELLE ELASTIQUE (8X15X0.3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61270300 Plus d'informationsQuantité requise : 4 |
||||||
50 |
GU19128660 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
51 |
GU35108450 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
52 |
GU19128760 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
53 |
GU98054535 - VIS Plus d'informationsQuantité requise : 2 |
||||||
54 |
GU95022110 - RONDELLE EVENT. Plus d'informationsQuantité requise : 4 |
||||||
55 |
GU92602410 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
56 |
GU61127220 - BAGUE Plus d'informationsQuantité requise : 2 |
