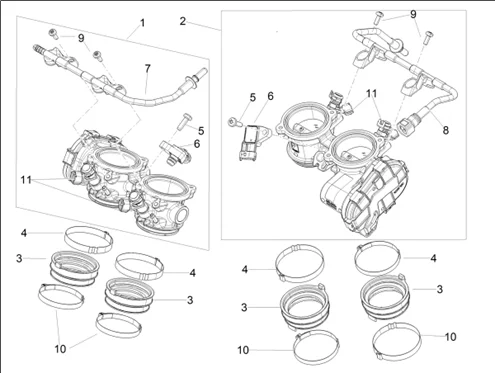

Moteur : 03.06 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1277/Tuono_V4_Factory_1100_E5_2025_Emea_03.06.png)
1 |
1A027203 - CORPS A PAPILLON AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A026715 - CORPS A PAPILLON ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1A026562 - RACCORD D'ADMISSION Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
1A026530 - COLLIER SERR. TUBE Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
5 |
VIS PARKER (5X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152329 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/7/3/img/67973.jpg)
6 |
DETECTEUR DE PRESSION ADMISSION ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4, 850 SRV/GILERA 800 GP -6423025 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
1A027648 - TUYAU ESSENCE, CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1A027647 - TUYAU ESSENCE, CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
896567 - VIS FIX. Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/7/img/69757.jpg)
10 |
COLLIER SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA/MOTO GUZZI -857306 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
1A027642 - INJECTOR Plus d'informationsQuantité requise : 4 |
