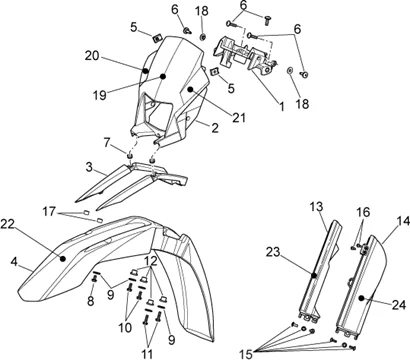

Chassis : 28.09 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/633/SXV_550_Pikes_Peak_2009_28.09.PNG)
1 |
AP9100517 - SUPPORTO STRUMENTO Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
85504700XN4 - COUPOLE, NOIR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
858388 - TIRANT GARDE-BOUE AV Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/0/0/img/97100.jpg)
4 |
GARDE-BOUE AVANT ORIGINE PIAGGIO APRILIA 450-550 RXV, SXV -AP8156343 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
6 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
7 |
CAOUTCHOUC (7X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120405 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
RONDELLE PLATE (6.6X18X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150015 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
11 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152283 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/3/3/img/97333.jpg)
12 |
DOUILLE EN T (D5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP9100501 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/0/7/img/97307.jpg)
13 |
PROTEGE FOURCHE DROIT ORIGINE PIAGGIO APRILIA 450-550 RSV, RXV -AP9100441 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
PROTEGE FOURCHE GAUCHE ORIGINE PIAGGIO APRILIA 450-550 RSV, RXV -AP9100440- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/5/6/img/97356.jpg)
15 |
VIS BTR SPECIALE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP9100548 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
16 |
VIS PARKER (4.8X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150246 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
17 |
RONDELLE EN T (10X16X3,5) POUR VIS DE 6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP9100053 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
18 |
DOUILLE/ENTRETOISE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121032 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
895040 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
895066 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
895041 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
895042 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
890575 - DECALCO * Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
894652 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
894653 - DECALCO Plus d'informationsQuantité requise : 1 |
