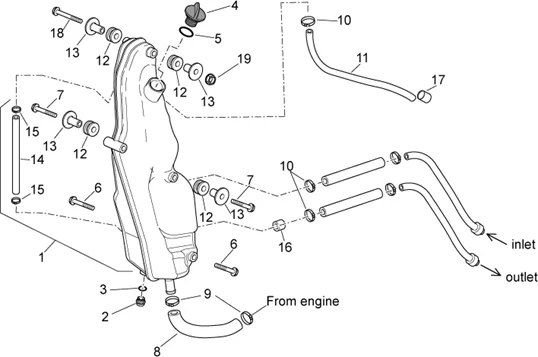

Chassis : 28.12 RÉSERVOIR HUILE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/628/SXV_550_2009-2011_28.12.PNG)
1 |
855686 - RESERVOIR HUILE CPL Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP9150174 - TAPPO SCARICO OLIO MOT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP9150349 - ROSETTA DI ALLUMINIO D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
BOUCHON REMPLISSAGE HUILE ORIGINE APRILIA 900-1200 CAPONORD, DORSODURO, SHIVER -AP9150410 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
5 |
JOINT AXE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -273754 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
6 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
7 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152282 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP9100496 - TUBO BLOW-BY Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
9 |
COLLIER CLIC (15.5X6.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101586 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
COLLIER CLIC (15.5X6.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101586 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/5/img/71425.jpg)
11 |
TUYAU/DURITE ESSENCE (9X14) ORIGINE PIAGGIO APRILIA 450-550 SXV, RXV, 750 BREVA, 1000 RSV-2, TUONO, FALCO, FUTURA, CAPONORD -AP8120987 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
12 |
CAOUTCHOUC PASSE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120223 Plus d'informationsQuantité requise : 4 |
||||||
|
13 |
AP9100950 - BOCCOLA SERB D14-D9-D6.5-H12 Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
AP9100665 - TUBO LIVELLO OLIO Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP9100951 - FASCETTA STRINGITUBO Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
Tuyau caoutchouc |
||||||
|
17 |
855766 - CAPUCHON CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP9100661 - VITE TEF M6X95 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP9100434 - DADO AUTOBL.FLANGIATO M6X1 Plus d'informationsQuantité requise : 1 |
