Eclatés de véhicule - GILERA STORM 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

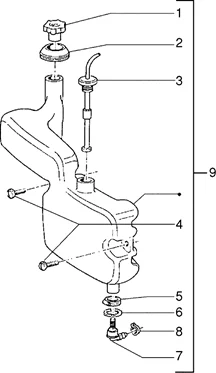

Châssis : T20 RESERVOIR D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/652/Storm_1998-2005_T20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/2/img/66042.jpg)
1 |
BOUCHON RESERVOIR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50CC 2T -259829- Plus d'informationsQuantité requise : 1 |
||||||
2 |
295522 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/6/img/67096.jpg)
3 |
JAUGE A HUILE ORIGINE PIAGGIO 50 TYPHOON 1997>2009, NRG 1999>2004, FLY 2005>, ZIP 1997>, VESPA PRIMAVERA 2013>, VESPA SPRINT 2014>/GILERA 50 RUNNER 1999>2004 -573458- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
292596 - JAUGE A HUILE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
5 |
COLLIER SERRAGE ROBINET D'ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -879888- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
6 |
JOINT DE ROBINET ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -196868- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/5/img/67105.jpg)
7 |
RACCORD RESERVOIR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -574362- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
104296 - RESSORT Plus d'informationsQuantité requise : 1 |
