Eclatés de véhicule - GILERA STALKER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

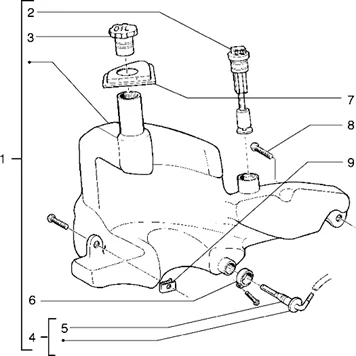

Châssis : T20 RESERVOIR D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/653/Stalker_1998-2005_T20.PNG)
1 |
RESERVOIR HUILE ORIGINE PIAGGIO GILERA 50 STALKER -299086- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
574237 - RESERVOIR STALKER CATAL Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
JAUGE A HUILE ORIGINE PIAGGIO GILERA 50 STALKER, DNA/PIAGGIO 50 LIBERTY, ZIP 1998>2005 -573080- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/2/img/66042.jpg)
3 |
BOUCHON RESERVOIR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50CC 2T -259829- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/5/img/67105.jpg)
4 |
RACCORD RESERVOIR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -574362- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/2/img/149102.jpg)
4 |
RACCORD/ROBINET DE RESERVOIR ESSENCE ORIGINE PIAGGIO 125 X8, X9, X-EVO, MP3, BEVERLY -674593- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
5 |
JOINT DE ROBINET ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -196868- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
6 |
COLLIER SERRAGE ROBINET D'ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -879888- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
