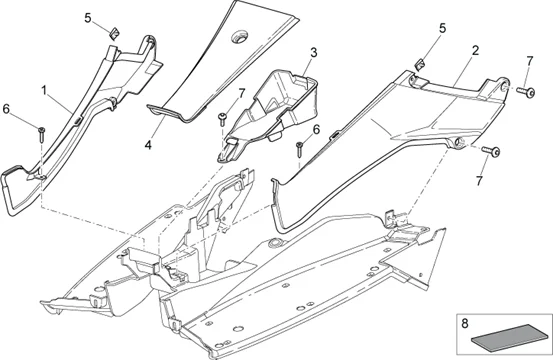

Chassis : 28.10 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_28.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/5/6/6/img/60566.jpg)
1 |
TUNNEL MARCHE PIED DROIT ORIGINE PIAGGIO 50 SR APRILIA 2014> -AP8269395 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/5/5/3/img/155553.jpg)
2 |
TUNNEL MARCHE PIED GAUCHE ORIGINE PIAGGIO 50 SR APRILIA 2014> -1B005147 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
TUNNEL MARCHE PIED GAUCHE ORIGINE PIAGGIO 50 SR APRILIA 2014> -1B005147 Plus d'informationsQuantité requise : 1 |
||||||
3 |
AP8268046 - VANO PORTATTREZZI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/5/6/8/img/60568.jpg)
4 |
CACHE COUVERCLE CENTRAL MARCHE PIED ORIGINE APRILIA 50 SR H2O 2018> -AP8269397 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
6 |
VIS PARKER (4,2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152351 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298 Plus d'informationsQuantité requise : 5 |
||||||
|
8 |
AP8117040 - EPONGE ADHÉS. NOIRE Plus d'informationsQuantité requise : 1 |
