Eclatés de véhicule - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

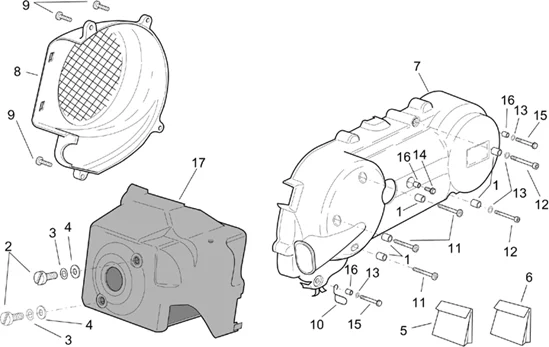

Moteur : 29.58 MOTEUR PLASTIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_29.58.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/5/img/46935.jpg)
1 |
DOUILLE/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121766- Plus d'informationsQuantité requise : 5 |
||||||
2 |
827061 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.JPG)
3 |
RONDELLE ELASTIQUE (8.4X15X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -006968- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
4 |
RONDELLE PLATE (8.4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -003038- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8139704 - COUVERCLE VARIATEUR, GRIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
9 |
VIS CRUCIFORME (5X21) ORIGINE PIAGGIO COMMUN A LA GAMME -015856- Plus d'informationsDescription : COMMUN A TOUTE LA GAMME Quantité requise : 4 |
||||||
|
10 |
AP8121889 - GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
484416 - VIS Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
12 |
VIS BRIDE TH (6X60) ORIGINE PIAGGIO COMMUN A LA GAMME -B016425- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/0/img/65430.jpg)
13 |
RONDELLE RESSORT (6,4X19) ORIGINE PIAGGIO COMMUN A LA GAMME -017492- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
14 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
15 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152284- Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
AP8221043 - DOUILLE ENTRETOISE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/8/img/66408.jpg)
17 |
431323 - COIFFE CYLINDRE ORIGINE PIAGGIO SKIPPER 125, TYPHOON 125 ANCIEN MODELE Plus d'informationsQuantité requise : 1 |
