Eclatés de véhicule - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

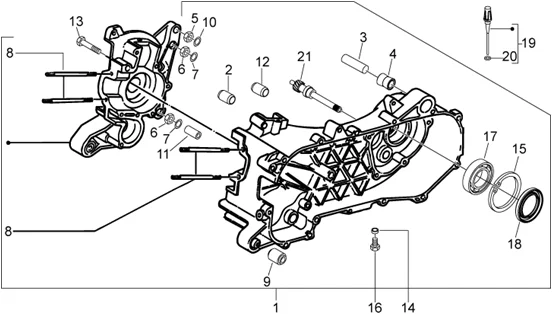

Moteur : 29.30 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_29.30.PNG)
1 |
CM1275105 - CARTER * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
2 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/4/img/66054.jpg)
3 |
ENTRETOISE DE SILENTBLOC D'AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -266625- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/6/img/66066.jpg)
4 |
SILENTBLOC AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -267823- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020006- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -020008- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/8/img/65698.JPG)
7 |
RONDELLE ARRET ORIGINE PIAGGIO COMMUN A LA GAMME -113533- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/2/img/70652.jpg)
8 |
GOUJON DE CYLINDRE SCOOT ORIGINE PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE -1A003633R- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
9 |
SILENTBLOC DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -486081- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
10 |
RONDELLE FREIN (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -287223 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
11 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
12 |
PION DE CENTRAGE (11X10) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B015957- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
13 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -B017632- Plus d'informationsDescription : COMMUN A LA GAMME Quantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
14 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/4/img/66604.jpg)
15 |
CIRCLIPS ARBRE ORIGINE PIAGGIO COMMUN A LA GAMME -480953- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
16 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
17 |
ROULEMENT (17X40X12) AXE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER 50 CC -435363- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/0/img/66590.jpg)
18 |
JOINT SPI (17X28X5) AXE POULIE EMBRAYAGE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR,SPORT CITY ONE/VESPA LX, SPRINT, PRIMAVERA -480066- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
19 |
JAUGE NIVEAU HUILE TRANSMISSION ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER -832130- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
20 |
JOINT/BAGUE ETANCHEITE (14,43X9,19X2,62) ORIGINE PIAGGIO COMMUN A LA GAMME -827085- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/1/img/66601.jpg)
21 |
ARBRE DE POULIE ORIGINE RECEPTRICE PIAGGIO 50 FLY 2T 2000>, FLY 4T 2006>, LIBERTY 2T 2000>, TYPHOON 2011>VESPA PRIMAVERA 4T 2012>/APRILIA SR MOTARD 2T 2012>, SPORT-CITY 2T 2008> -480848- Plus d'informationsQuantité requise : 1 |
