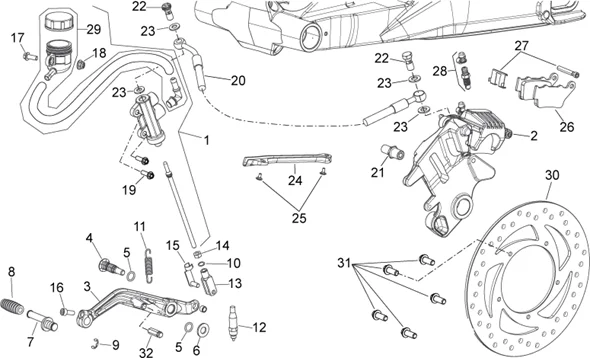

Chassis : 28.29 SYS.FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.29.PNG)
1 |
852023 - MATRE CYLINDRE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
859784 - MA?T.CYL. FREIN AR Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
897112 - PINCE FREIN AR* Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
860111 - PINCE FREIN Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/5/8/img/39158.jpg)
3 |
PEDALE DE FREIN ORIGINE PIAGGIO APRILIA 750 SHIVER 2007> -851615 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/5/1/img/70751.jpg)
4 |
PIVOT/VIS DE PEDALE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -884033 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/7/5/img/215775.jpg)
4 |
PIVOT/VIS DE PEDALE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -2B012762 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
5 |
JOINT TORIQUE (11,11X1,78) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144007 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
6 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
7 |
TIGE LEVIER DE FREIN ARRIERE ORIGINE PIAGGIO POUR MOTO-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/TIGE SELECTEUR DE VITESSES GAMME MOTO APRILIA -AP8121221 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
8 |
CAOUTCHOUC LEVIER DE FREIN ARRIERE OU SELECTEUR ORIGINE PIAGGIO POUR MOTO-GUZZI/APRILIA -AP8120912 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
9 |
CLIPS/CIRCLIPS DIAMETRE 9MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150462 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
10 |
JOINT TORIQUE MAITRE CYLINDRE ARRIERE (OR112) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120178 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/9/img/71499.jpg)
11 |
RESSORT PEDALE DE FREIN ORIGINE MOTO GUZZI V7, V9, V85 -AP8121927 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
12 |
CONTACTEUR FEU STOP ARRIERE ORIGINE PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO -AP8112996 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
13 |
FOURCHETTE TIGE DE COMMANDE DE MAITRE CYLINDRE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A ALA GAMME MOTO -AP8101968 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
14 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150026 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
15 |
AGRAPHE/CLIP TIGE DE MAITRE CYLINDRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -AP8201301 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
16 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150137 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
19 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 2 |
|||||||||
|
20 |
852494 - TUYAU Plus d'informationsQuantité requise : 1 |
|||||||||
|
21 |
2B004790 - PIVOT Plus d'informationsQuantité requise : 1 |
|||||||||
|
21 |
898486 - PIVOT Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
22 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
23 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
24 |
CAPTEUR ABS ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY -1D003350 Plus d'informationsQuantité requise : 1 |
|||||||||
|
24 |
854893 - PROTECTION Plus d'informationsQuantité requise : 1 |
|||||||||
|
24 |
CAPTEUR ABS ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY -1D003350 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
25 |
VIS BRIDE TH (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152273 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
25 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/7/4/img/70874.jpg)
26 |
PLAQUETTE DE FREIN ARRIERE ORIGINE PIAGGIO APRILIA 750 DORSODURO 2008>, SHIVER 2007>, 900 DORSODURO 2017 (PAIRE) -897119 Plus d'informationsQuantité requise : 1 |
|||||||||
|
27 |
856052 - KIT PIVOT Plus d'informationsQuantité requise : 1 |
|||||||||
|
28 |
AP8213574 - SPURGO ARIA Plus d'informationsQuantité requise : 1 |
|||||||||
|
29 |
856053 - RESERVOIR HUILE Plus d'informationsQuantité requise : 1 |
|||||||||
|
30 |
859714 - DISQUE FREIN Plus d'informationsQuantité requise : 1 |
|||||||||
|
30 |
AP8133789 - DISCO FRENO POST. D.240 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
31 |
VIS BRIDE TH (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152286 Plus d'informationsQuantité requise : 5 |
|||||||||
|
32 |
GU05677730 - PIVOT FIXATION Plus d'informationsQuantité requise : 1 |
|||||||||
