Eclatés de véhicule - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

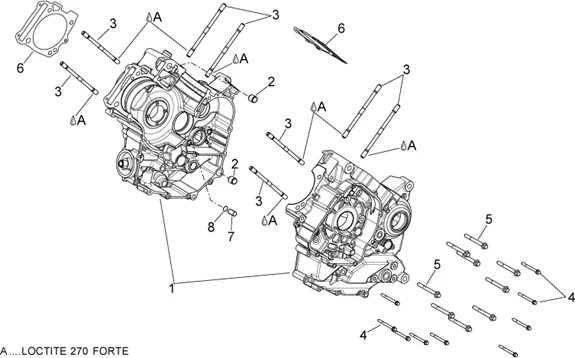

Moteur : 29.36 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.36.PNG)
1 |
B0144955001 - CARTER Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
B0144955002 - CARTER Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
B0144955003 - CARTER Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
B0144955004 - CARTER Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
8498725004 - CARTER Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
974051 - GOUJON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
3 |
GOUJON (10X1.25X166) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003631R Plus d'informationsQuantité requise : 8 |
||||||
|
4 |
874548 - VIS BRIDE Plus d'informationsQuantité requise : 8 |
||||||
|
5 |
848465 - VIS Plus d'informationsQuantité requise : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/7/7/5/img/62775.jpg)
6 |
JOINT EMBASE DE CYLINDRE (0.4) ORIGINE APRILIA 750 DORSODURO, SHIVER 2007>2016 -CM154101 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
CM154102 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
CM154104 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
834317 - CIRCLIPS Plus d'informationsQuantité requise : 1 |
