Eclatés de véhicule - DERBI SENDA SM 125 Senda SM 125 4T 2004-2007 E2 (EMEA)
Moteur : 14 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1074/Senda_SM_125_4T_2004-2007_E2_(EMEA)_14.png)

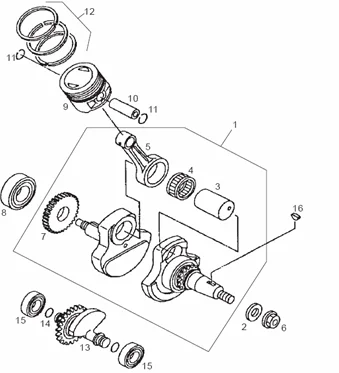

14 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1074/Senda_SM_125_4T_2004-2007_E2_(EMEA)_14.png)
![]() 1 |
00M12501110 - ENS. VILEBREQUIN - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
00M12501073 - RONDELLE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
00M12501026 - GOUPILLE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
00M12501030 - ROULEMENT - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
00M12501025 - BIELLE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
00M12501113 - ECROU - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
00M12501109 - ENGRENAGE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
00M12501237 - ROULEMENT - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
00M12501024 - PISTON (STD) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
00M12501166 - PISTON (0.50MM O/S) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
00M12501167 - PISTON (1,00MM O/S) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
00M12501023 - GOUPILLE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
00M12501031 - R-ANNEAU BOULON Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00M12501168 - SEGMENT DE PISTON (STD) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00M12501215 - SEGMENT DE PISTON (0.50MM O/S) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00M12501216 - SEGMENT DE PISTON (1.00MM O/S) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
00M12501028 - CONTREPOIDS - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
00M12501029 - ANNEAU - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
00M12501225 - ROULEMENT - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
00M12502205 - CLAVETTE Plus d'informationsQuantité requise : 1 |
