Eclatés de véhicule - DERBI SENDA R 50 SENDA R X-TREM 2003 2a EDICION
Tables : 11 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_11.png)

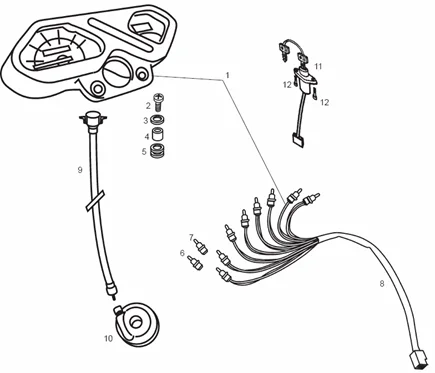

11 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_11.png)
![]() 1 |
864515 - TABLEAU DE BORD - PRODUIT DE REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 1 |
00H01613521 - CTO.TABL.PORTAIST.SR X-TRM USA - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 1 |
00H01615521 - CTO.TABL.PORTAIST.SD-R 2003 - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 1 |
00H01613521 - CTO.TABL.PORTAIST.SR X-TRM USA - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
VIS CRUCIFORME (5X80) ORIGINE PIAGIO COMMUN A LA GAMME -00012152000- Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
00454050001 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -00H01600911 Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
CAOUTCHOUC PASSE-CABLE/SILENTBLOC ORIGINE DERBI 50 SENDA 2000>2017 /GILERA 50 SMT, RCR /APRILIA 50-125 SX, RX -00D01500021- Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
00G01602581 - R-PORTE-LAMPES Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
00G01601581 - R-PORTE-LAMPES Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
00H04316651 - FAISCEAU COMPTEUR Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
00H01613021 - ENSEMB.CABLE-GAINE COMPTEURKM * Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR ORIGINE PIAGGIO GILERA 50 RCR 2006> -00H01616021- Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
ENTRAINEUR DE COMPTEUR (D12) ORIGINE PIAGGIO 50 GILERA SMT 2006>2010, RCR 1998>2005/DERBI SENDA R 2000>2010 00G01606051- Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
00H01610381 - SET SERRURE Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
VIS BTR (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150169 Plus d'informationsQuantité requise : 1 |
