Eclatés de véhicule - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

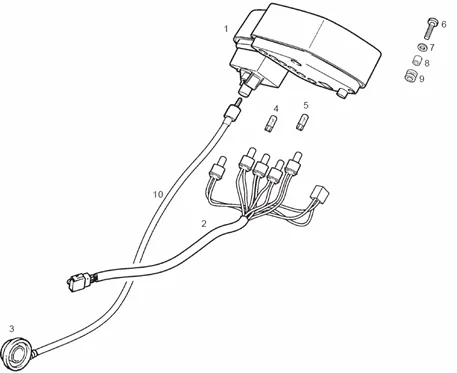

Tables : 11 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_11.png)
1 |
00H01621521 - BOITIER TABLEAU BORD (KM/H) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
00H01624521 - BOITIER TABLEAU BORD (M/H) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/7/4/4/img/189744.JPG)
2 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR ORIGINE DERBI 125 SENDA R, SM 2004>2010 -00H01620021- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
00H01613051 - RENVOI DE ROUE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
00G01602581 - R-PORTE-LAMPES Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
00G01601581 - R-PORTE-LAMPES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
6 |
VIS CRUCIFORME (5X80) ORIGINE PIAGIO COMMUN A LA GAMME -00012152000- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
7 |
RONDELLE PLATE (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -847226- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
8 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -00H01600911- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
9 |
CAOUTCHOUC PASSE-CABLE/SILENTBLOC ORIGINE DERBI 50 SENDA 2000>2017 /GILERA 50 SMT, RCR /APRILIA 50-125 SX, RX -00D01500021- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR ORIGINE DERBI 125 SENDA R, SM 2004>2010 -00H01620021- Plus d'informationsQuantité requise : 1 |
